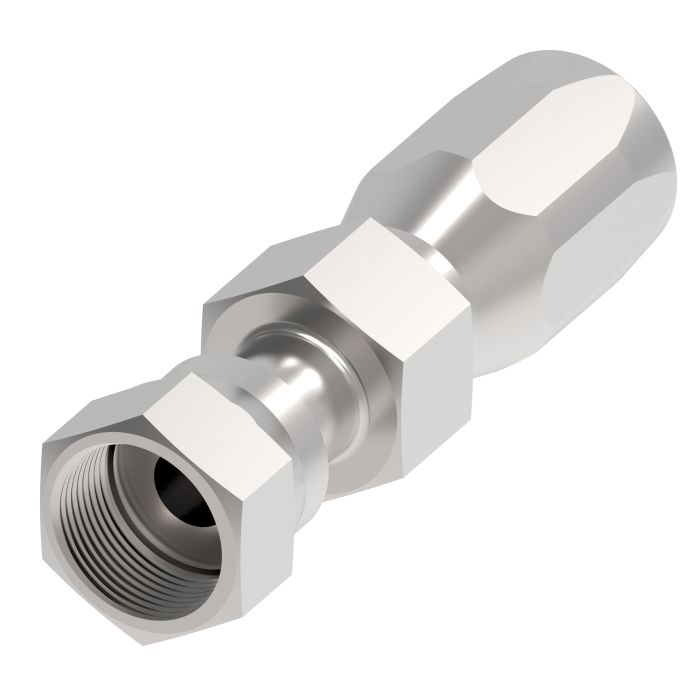

Steel Reusable 1 Wire Braid Fitting, 11/16-16 Female SAE O-Ring Face Seal, -06 Hose, Straight

Ask A Question

Description & Features

The Steel Reusable 1 Wire Braid Fitting 11/16-16 Female SAE O-Ring Face Seal -06 Hose Straight is engineered by Danfoss Power Solutions (II LLC Aeroquip) to offer reliable performance in various industrial applications. This fitting ensures a secure seal with its Female SAE O-Ring face designed for -06 hose size.

Crafted from durable steel it features a 11/16-16 thread size for a precise fit. The reduced bore design enhances the efficiency of fluid transfer systems. The female to female connection type allows for easy integration with compatible components.

With a hex size of 0.81 this fitting is suitable for use in demanding environments. No mandrel or thread sealant is required during installation simplifying the process. The product falls under the UNSPSC code 40183100.

MPN: FJ9706-0606S

Supplier Part Number: FJ9706-0606S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.44 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
1.54 in
d Dimensions
1.53 in
Dimensions
2.82 in L x 0.81 in W x 0.94 in H
End Gender 1
Female
End Gender 2
Female
End Size 1
11/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
Hose Fitting
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
Hex Size
0.826 in
Hose Dash Size
06
Inside Diameter
0.24 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
21 mm
Series
FJ9706 Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions Price Action
Steel Reusable 1 Wire Braid Fitting, 13/16-16 Female SAE O-Ring Face Seal, -08 Hose, Straight

FJ9706-0808S Steel Reusable ORS Fitting

13/16-16

08

1.98 in

Steel Reusable 1 Wire Braid Fitting, 1-3/16-12 Female SAE O-Ring Face Seal, -12 Hose, Straight

FJ9706-1212S Steel Reusable ORS Fitting

1-3/16-12

12

2.11 in

Steel Reusable 1 Wire Braid Fitting, 1-7/16-12 Female SAE O-Ring Face Seal, -16 Hose, Straight

FJ9706-1616S Steel Reusable ORS Fitting

1-7/16-12

16

2.23 in

Product Questions & Answers (2)

Question by: Danny K on Jul 21, 2025, 2:34 PM
Does this fitting need any thread tape or sealant when you put it together, or does it seal up on its own?
Answer by: Customer Support on Jul 23, 2025, 6:14 AM
The O-ring face seal design handles the sealing without any thread sealant or tape needed. The female SAE O-ring face seat creates the seal at the face of the connection, so you're not relying on thread engagement for leak prevention. No mandrel is required during installation either, which keeps the whole process pretty straightforward.
Question by: Frank S on Mar 29, 2026, 8:39 AM
Will this fitting work with standard hydraulic hoses, or do I need something special?
Answer by: Customer Support on Mar 30, 2026, 12:31 PM
This Aeroquip fitting is designed for use with -06 size hoses, so as long as your hose is that size, you should be good to go.
