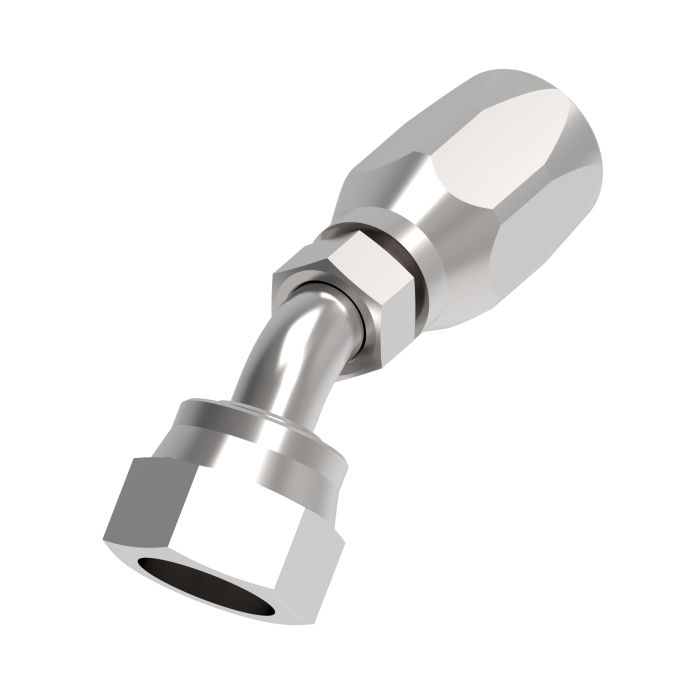

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 11/16-16 Female O-Ring Face Seal Swivel, -06 Hose, 45 deg Elbow

Ask A Question

Description & Features

The steel reusable 1 wire braid reduced bore fitting designed for robust industrial applications provides a reliable connection with its 11/16-16 female O-ring face seal swivel. This component is engineered for a -06 hose with a 45-degree elbow to accommodate varied configurations.

Manufactured by Danfoss Power Solutions (II LLC Aeroquip) it offers durability and performance in demanding environments. The fitting features a 0.43-inch height and a hex size of 0.81 ensuring it meets precise technical specifications.

End type connections include FPT and Line/Hose/Tube interfaces with an end size 1 of 0.6875 and end size 2 of 0.375 facilitating compatibility with a range of systems. Its construction does not require a mandrel simplifying installation and maintenance processes.

MPN: C1FZ61

Supplier Part Number: FJ9707-0606S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.28 in
Compatible Hose ID
0.38 in
Connection Size 1
3/8 in
Connection Size 2
3/8 in
Connection Type
Female ORFS Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female ORFS Swivel
Construction Style
Reusable
Cut-Off Factor
1.4 in
d Dimensions
1.37 in
Dimensions
3.05 in L x 0.81 in W x 1.61 in H
Drop Dimensions
0.43 in
End Gender 1
Female
End Gender 2
Female
End Size 1
11/16 in
End Size 2
3/8 in
Finish
Dura-Kote™
Fitting Type
45 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
h Dimensions
0.43 in
Hex Size
0.669 x 0.472 in
Hose Dash Size
06
Inside Diameter
0.22 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
21 mm
Series
FJ9707 Series
Thread Sealant
Without Thread Sealant
Thread Size
11/16-16
Thread Type
UN

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 13/16-16 Female O-Ring Face Seal Swivel, -08 Hose, 45 deg Elbow

FJ9707-0808S Steel Reusable ORS Fitting

13/16-16

08

1.88 in

0.59 in

Product Questions & Answers (1)

Question by: Troy R on Apr 15, 2025, 6:06 AM
Got a -06 hose I need to connect at a 45 degree angle on a tight hydraulic setup. this fitting work for that?
Answer by: Customer Support on Apr 16, 2025, 12:18 PM
For a -06 hose with a 45-degree elbow configuration, this is exactly the fitting you'd be looking at. It's built around that specific hose size and angle, with an 11/16-16 female O-ring face seal swivel on one end. The ORFS swivel connection helps with sealing and gives you some rotational flexibility during installation, which matters a lot when you're working in a confined space. No mandrel required either, so getting it onto the hose is pretty straightforward.
