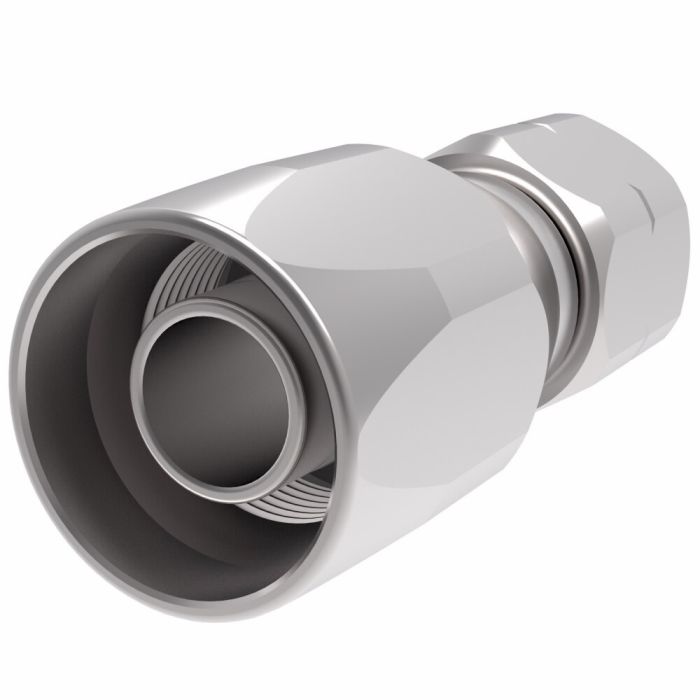

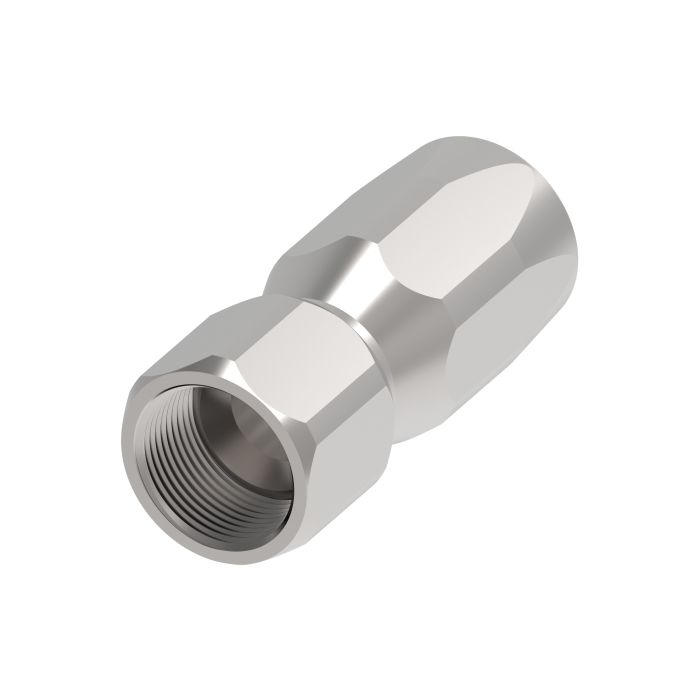

main product photo

Steel Reusable 1 Wire Braid Reduced Bore Three-Piece Fitting, 1-1/16-14 Female SAE 45 deg Flare Swivel, -12 Hose, Straight

Ask A Question

Description & Features

This steel reusable fitting is a three-piece, reduced bore style designed for one wire braid hose. It features a 1-1/16-14 female SAE 45-degree flare swivel end.

Compatible with -12 sized hose, this Aeroquip by Danfoss fitting, catalog number C1BN69, requires a mandrel during assembly. It is a straight configuration fitting.

SKU: 401-12S

Supplier Part Number (MPN): 401-12S

Alternate Part Numbers: C1BN69

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.02 in
Compatible Hose ID
0.62 in
Connection Size 1
3/4 in
Connection Size 2
3/4 in
Connection Type
Female SAE Flared Swivel, Hose
Connection Type 1
Hose
Connection Type 2
Female SAE 45 deg Swivel
Construction Style
Reusable
Cut-Off Factor
1-1/2 in
d Dimensions
1.45 in
Dimensions
3.02 in L
End Connection Torque
79 to 87 lb-ft
End Gender 1
Female
End Size 1
12
Finish
Zinc-Plated
Fitting Type
Hose Fitting
For Use With
1503, 2580, 2651, FC234, FC300, FC321, FC350, FC355 and FC802 Series A/C and Refrigeration Hoses
Hex Size
1-1/4
Hose Dash Size
12
Inside Diameter
0.61 in
Mandrel Required
Without Mandrel
Material
Steel
Material Construction
Carbon Steel
Operating Temperature
-40
Series
401 Series
Thread Sealant
Without Thread Sealant
Thread Size
1-1/16-14
Thread Type
UN

Similar Products

Model Number Mandrel Required Thread Size Hose Dash Size d Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Three-Piece Fitting, 5/8-18 Female SAE 45 deg Flare Swivel, -06 Hose, Straight

401-6S Steel Reusable SAE Fitting

With Mandrel

5/8-18

06

1.15 in

Steel Reusable 1 Wire Braid Reduced Bore Three-Piece Fitting, 3/4-16 Female SAE 45 deg Flare Swivel, -08 Hose, Straight

401-8S Steel Reusable SAE Fitting

With Mandrel

3/4-16

08

1.38 in

Steel Reusable 1 Wire Braid Reduced Bore Three-Piece Fitting, 1-5/16-14 Female SAE 45 deg Flare Swivel, -16 Hose, Straight

406-16S Steel Reusable SAE Fitting

Without Mandrel

1-5/16-14

16

1.33 in

Product Questions & Answers (1)

Question by: Glen A on Sep 19, 2025, 1:12 PM
i got a -12 hose and need a straight female swivel that’s SAE 45 flare, is this the right end?
Answer by: Customer Support on Sep 21, 2025, 8:31 AM
Match it up by the thread and the hose size. This fitting is a straight 1-1/16-14 female SAE 45 degree flare swivel for a -12 hose, and it’s a reusable three-piece reduced bore style for 1 wire braid hose.
