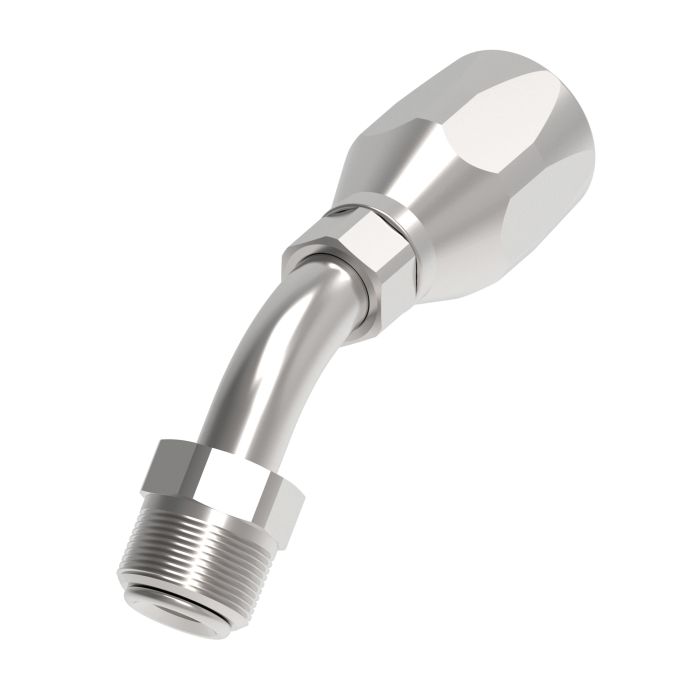

main product photo

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1/2-20 SAE Male Inverted Flare, -05 Hose, 45 deg Elbow

Ask A Question

Description & Features

This high-performance Steel Reusable 1 Wire Braid Reduced Bore Fitting is engineered by Danfoss Power Solutions (II LLC Aeroquip) to meet the demanding requirements of industrial applications. Designed for use with -05 hose sizes it features a durable 1/2-20 SAE male inverted flare fitting with a 45-degree elbow.

Constructed from robust steel this fitting ensures optimal reliability and longevity. The male end has a thread size of 1/2-20 and connects seamlessly to an inverted line hose or tube. The female end has a size of 0.3125 inches with a hex size of 0.69 inches making it versatile and adaptable for various industrial settings.

With no need for a mandrel and free from thread sealant requirements the fitting simplifies installation processes. It boasts a height of 0.96 inches ensuring compactness while delivering efficient performance. The product is categorized under the ECCN EAR99 highlighting its compliance with export regulations.

Supplier Part Number: 190371-5S

MPN: 190371-5S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
2.9 in
Compatible Hose ID
0.31 in
Connection Size 1
5/16 in
Connection Size 2
5/16 in
Connection Type
Hose, Male SAE Inverted Flared
Connection Type 1
Hose
Connection Type 2
Male SAE 45 deg Inverted Flare
Construction Style
Reusable
Cut-Off Factor
2.12 in
d Dimensions
2.12 in
Dimensions
17.526 in L x 0.69 in W x 1.68 in H
Drop Dimensions
0.96 in
End Gender 1
Male
End Gender 2
Female
End Size 1
1/2 in
End Size 2
5/16 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
h Dimensions
0.96 in
Hex Size
11 mm
Hose Dash Size
05
Inside Diameter
0.17 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
0.669 in
Series
190371 Series
Thread Sealant
Without Thread Sealant
Thread Size
1/2-20
Thread Type
UNF

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 SAE Male Inverted Flare, -04 Hose, 45 deg Elbow

190371-4S Steel Reusable SAE Inv Fitting

7/16-20

04

1.99 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, -05 (1/2-20) SAE Male Inverted Flare, -06 Hose, 45 deg Elbow

190371-5-6S Steel Reusable SAE Inv Fitting

1/2-20

06

2.1 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, -06 (5/8-18) SAE Male Inverted Flare, -06 Hose, 45 deg Elbow

190371-6S Steel Reusable SAE Inv Fitting

5/8-18

06

2.1 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-18 SAE Male Inverted Flare, -08 Hose, 45 deg Elbow

190371-8S Steel Reusable SAE Inv Fitting

3/4-18

08

2.24 in

0.93 in

Product Questions & Answers (2)

Question by: Sherry C on Oct 8, 2025, 7:43 PM
trying to replace a 45 elbow on a -05 hose, is this one the 1/2-20 SAE male inverted flare?
Answer by: Customer Support on Oct 10, 2025, 6:21 AM
It’s a 45 degree elbow reusable fitting for -05 hose with a 1/2-20 SAE male inverted flare on the male end. The male threads are 1/2-20 and it’s meant to connect to an inverted line hose or tube.
Question by: Judy M on Nov 13, 2025, 7:00 PM
fitting says it works on -05 hose, but does it need any kind of mandrel or special tool to get it seated right?
Answer by: Customer Support on Nov 15, 2025, 11:10 AM
No mandrel required for this one. That's actually one of the advantages of a reusable fitting like this. You assemble it by hand with standard tools, and there's no need for a press or mandrel setup. Thread sealant isn't required either, which keeps the installation process pretty straightforward.
