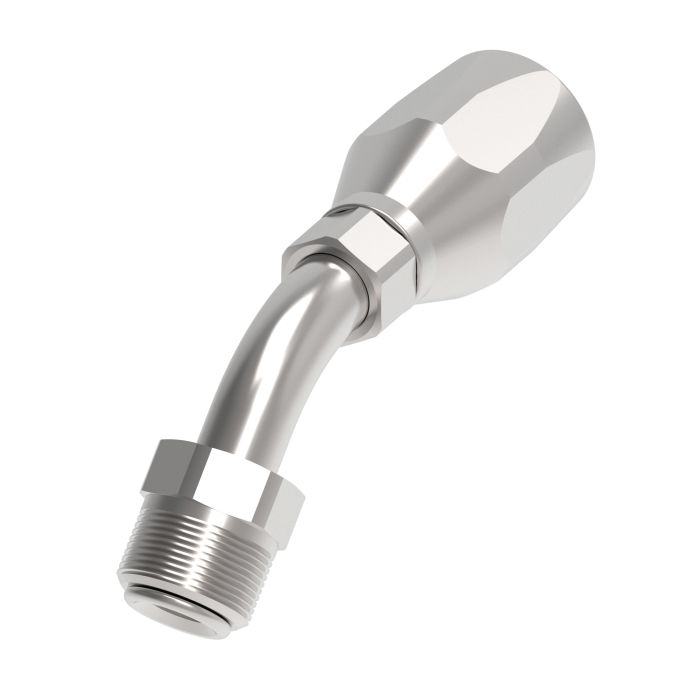

main product photo

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 3/4-18 SAE Male Inverted Flare, -08 Hose, 45 deg Elbow

Ask A Question

Description & Features

This fitting ensures a reliable connection for hydraulic systems thanks to its sturdy steel construction.

Precision-engineered it supports a 3/4-18 SAE male inverted flare connection making it compatible with a wide range of applications. Featuring a 45-degree elbow bend it facilitates effective fluid flow management in confined spaces.

Designed for durability the steel reusable fitting is tailored to accommodate a -08 hose with a reduced bore thereby optimizing performance in demanding environments.

Meticulously crafted by Danfoss Power Solutions (II LLC Aeroquip) it fits seamlessly into existing setups. The fitting's hex size of 0.94 allows for easy installation and secure attachment.

Constructed to industrial standards this component is a versatile solution for varied hydraulic system needs.

Supplier Part Number: 190371-8S

Specifications

Brand
Aeroquip® by Danfoss
a Dimensions
3.39 in
Compatible Hose ID
1/2 in
Connection Size 1
1/2 in
Connection Size 2
1/2 in
Connection Type
Hose, Male SAE Inverted Flared
Connection Type 1
Hose
Connection Type 2
Male SAE 45 deg Inverted Flare
Construction Style
Reusable
Cut-Off Factor
2.24 in
d Dimensions
2.24 in
Dimensions
3.76 in L x 0.94 in W x 1.77 in H
Drop Dimensions
0.93 in
End Gender 1
Male
End Gender 2
Female
End Size 1
3/4 in
Finish
Zinc-Plated
Fitting Type
45 deg Elbow
For Use With
302A, 303, 1503, 2580, 2651, FC234, FC300, FC321, FC350 and FC355 Series Hoses
h Dimensions
0.93 in
Hex Size
0.75 x 0.59 in
Hose Dash Size
08
Inside Diameter
0.36 in
Material
Steel
Material Construction
Carbon Steel
Reusable Socket Hex Size
0.905 in
Series
190371 Series
Thread Sealant
Without Thread Sealant
Thread Size
3/4-18

Similar Products

Model Number Thread Size Hose Dash Size d Dimensions h Dimensions Price Action
Steel Reusable 1 Wire Braid Reduced Bore Fitting, 7/16-20 SAE Male Inverted Flare, -04 Hose, 45 deg Elbow

190371-4S Steel Reusable SAE Inv Fitting

7/16-20

04

1.99 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, -05 (1/2-20) SAE Male Inverted Flare, -06 Hose, 45 deg Elbow

190371-5-6S Steel Reusable SAE Inv Fitting

1/2-20

06

2.1 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, 1/2-20 SAE Male Inverted Flare, -05 Hose, 45 deg Elbow

190371-5S Steel Reusable SAE Inv Fitting

1/2-20

05

2.12 in

0.96 in

Steel Reusable 1 Wire Braid Reduced Bore Fitting, -06 (5/8-18) SAE Male Inverted Flare, -06 Hose, 45 deg Elbow

190371-6S Steel Reusable SAE Inv Fitting

5/8-18

06

2.1 in

0.96 in

Product Questions & Answers (3)

Question by: Neal D on May 9, 2025, 5:54 PM
fitting says "reduced bore" on the -08 hose, does that mean flow's gonna be restricted compared to a standard -08 fitting?
Answer by: Customer Support on May 11, 2025, 6:15 AM
Reduced bore means the internal passage is narrower than a full-bore -08 fitting, so yes, there is some flow restriction compared to a standard bore equivalent. For most hydraulic circuits running moderate flow rates that tradeoff is acceptable, but if your system is already tight on flow capacity or running high velocity through that line, it's worth accounting for the bore reduction in your calculations before installing.
Question by: Gene H on Aug 16, 2025, 9:37 PM
Will this fitting hold up okay in a hydraulic system for some heavy machinery?
Answer by: Customer Support on Aug 18, 2025, 8:37 AM
Designed for demanding environments, this steel fitting from Eaton Aeroquip provides a reliable connection in hydraulic systems. Its robust construction ensures durability, even with heavy machinery.
Question by: Dean F on Oct 28, 2025, 7:44 PM
trying to swap out an old elbow, is this one the kind that screws into a 3/4-18 SAE male inverted flare port and takes a -08 hose?
Answer by: Customer Support on Oct 30, 2025, 6:23 AM
You’re looking at a 3/4-18 SAE male inverted flare connection on one end and it’s built to go on a -08 hose on the other. It’s also the reduced bore style, so it matches setups that call for a reduced bore -08 reusable fitting.
