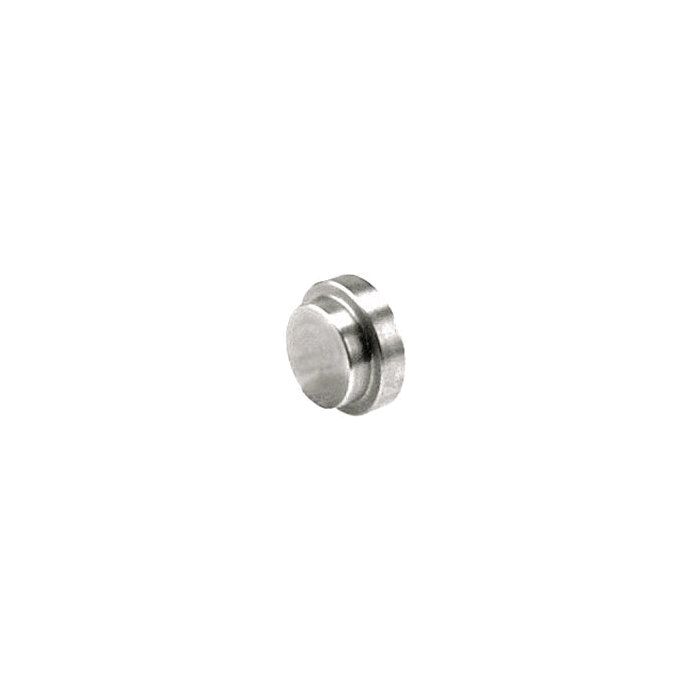

Steel SAE 4-Bolt Flange Plug, 1.25 Inch Code 61 Flange, O-Ring Half

Description & Features

The Steel SAE 4-Bolt Flange Plug 1.25 Inch Code 61 Flange O-Ring Half from Anchor Fluid Power provides robust and reliable performance in industrial settings. Ideal for applications requiring secure sealing and durability this flange plug features a 1.25-inch pad size and is compatible with Code 61 flanges.

Constructed from high-quality steel it ensures long-lasting strength and resistance to wear and corrosion. The integrated O-ring half enhances the sealing efficiency making it suitable for demanding environments.

This flange accessory is engineered for ease of installation and maintenance fitting seamlessly with existing systems. Meeting rigorous industry standards it ensures dependable functionality and superior performance.

Supplier Part Number: 20FOP

Specifications

A 2	C 1.70	D 0.32	E 0.56	Brand Anchor Fluid Power-Special Quotes	Brand Anchor Fluid Power	Pack Size 1.00	UOM EA	Manual Override Option No	Pad Size 1.25	Supplier Part Number 20FOP	Product Weight 0.41 lbs	Alternate Part Numbers Alternate Part Number 20FOP-HSC, Alternate Part Number C1ZY88

Similar Products

Model Number	Pad Size	A	C	D	E
12FOP Steel SAE Code 61 Flange Plug	0.75	1.5	1.25	0.265	0.56
16FOP Steel SAE Code 61 Flange Plug	1	1.75	1.5	0.315	0.56
20FOP Steel SAE Code 61 Flange Plug	1.25	2	1.7	0.315	0.56

Product Questions & Answers (1)

Question by: Carl R on Sep 12, 2025, 9:14 AM

got a Code 61 flange that needs capping off on a hydraulic line we ain't using right now. this the right plug for that?

Answer by: Customer Support on Sep 14, 2025, 6:55 AM

For a 1.25-inch Code 61 flange, yes, this is the correct fit. The 20FOP is built specifically for that pad size and uses a 4-bolt mounting pattern to seat securely against the flange face. The o-ring half handles the sealing side of things, so you're not relying on metal-to-metal contact alone. Pretty straightforward cap-off solution for an unused port.
