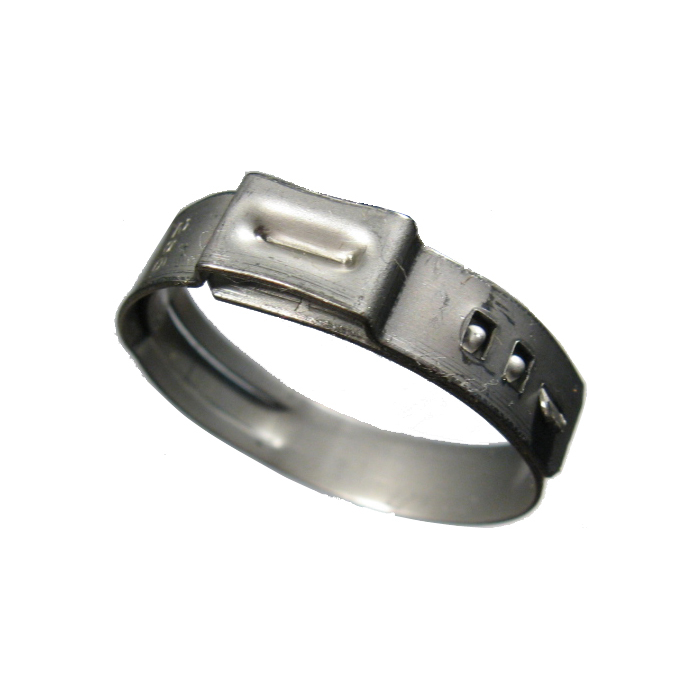

Stepless Ear Pinch Clamp, Stainless, 0.520 - 0.618 Inch Clamping Range, 0.276 Inch Width

Description & Features

The clamp is meticulously designed for secure and efficient sealing on low durometer or thin-walled hoses and tubing. The stepless ear design ensures a complete 360deg; seal, eliminating the risk of leakage. Fabricated from high-grade stainless material, it offers durability and resistance against corrosion.

It has a clamping range of 0.520 - 0.618 inches and a width of 0.276 inches, making it ideal for applications involving silicone, vinyl, and polyurethane lines. The smooth inner band is engineered to prevent hose damage, ensuring operational reliability.

The unique tongue-in-groove feature builds resilient strength into the clamp, while the single-ear design simplifies installation. The clamp is best installed with a 1/16 inch gap, providing a spring-like action that maintains a firm hold against pressure, vibration, and hose shrinkage due to temperature changes.

Part Number: 16700016

Specifications

Clamping Range (in) 0.520 - 0.618	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 0.63	Size 15.7 mm	Supplier Part Number 16700016	Product Weight 0.05 lbs	Alternate Part Numbers Alternate Part Number C1ES59, Alternate Part Number MI-01555306, Alternate Part Number MINO-00691J50993

Similar Products

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010 Stepless Ear Pinch Clamp	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013 Stepless Ear Pinch Clamp	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016 Stepless Ear Pinch Clamp	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700020 Stepless Ear Pinch Clamp	Stainless	18.5 mm	0.719	0.602 - 0.728	0.276
16700026 Stepless Ear Pinch Clamp	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031 Stepless Ear Pinch Clamp	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035 Stepless Ear Pinch Clamp	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009 Stepless Ear Pinch Clamp	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276
