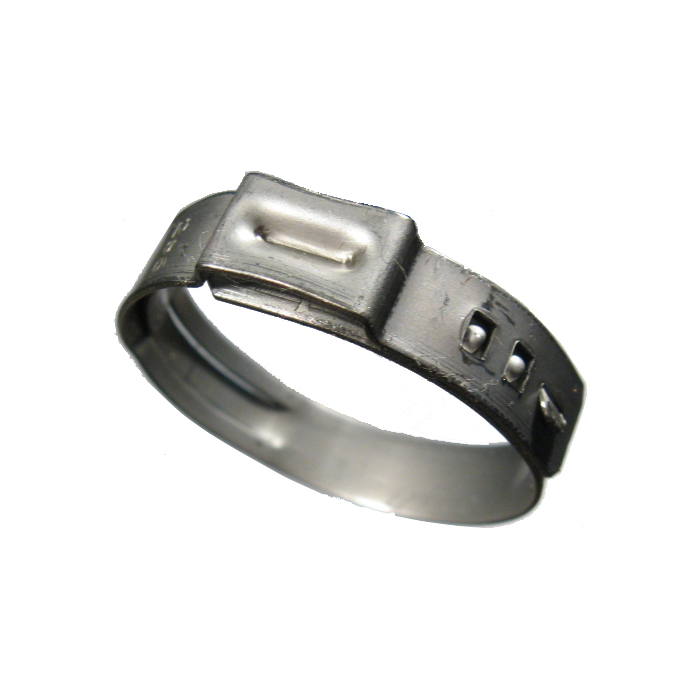

Stepless Ear Pinch Clamp, Stainless, 0.602 - 0.728 Inch Clamping Range, 0.276 Inch Width

Description & Features

The Oetiker Stepless Ear Pinch Clamp is engineered from durable stainless steel with a clamping range of 0.602 - 0.728 inches and a 0.276-inch width. Ideal for low durometer and thin-walled hoses such as silicon, vinyl, and polyurethane, this clamp ensures a smooth inner band to prevent hose damage.

Featuring a unique tongue-in-groove design, it provides a reliable 360deg; seal, maintaining secure pressure against vibrations and hose shrinkage due to temperature changes or aging. The proper installation of these one-ear clamps involves leaving a 1/16-inch gap for resilient strength.

The inner band is designed to be smooth to prevent any damage to the hose, making it well-suited for various industrial applications. This model, part number 16700020, is part of the Hose Clamps & Ferrules category.

MPN: C1ES60

Supplier Part Number: 16700020

Specifications

Clamping Range (in) 0.602 - 0.728	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 0.72	Size 18.5 mm	Supplier Part Number 16700020	Product Weight 0.07 lbs	Alternate Part Numbers Alternate Part Number C1ES60, Alternate Part Number MI-01555307, Alternate Part Number MINO-00691J50994

Similar Products

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010 Stepless Ear Pinch Clamp	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013 Stepless Ear Pinch Clamp	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016 Stepless Ear Pinch Clamp	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700026 Stepless Ear Pinch Clamp	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031 Stepless Ear Pinch Clamp	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035 Stepless Ear Pinch Clamp	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009 Stepless Ear Pinch Clamp	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276
