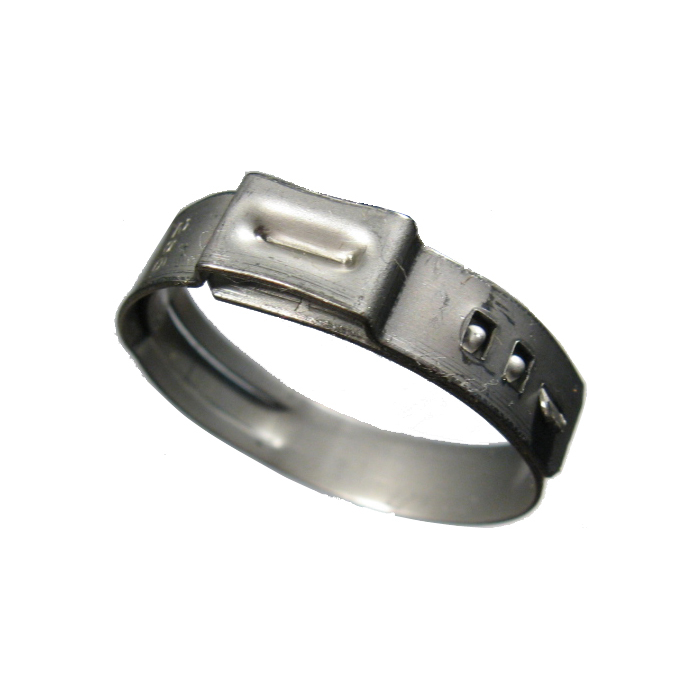

Stepless Ear Pinch Clamp, Stainless, 0.764 - 0.890 Inch Clamping Range, 0.276 Inch Width

Description & Features

The Stepless Ear Pinch Clamp, Stainless, 0.764 - 0.890 Inch Clamping Range, 0.276 Inch Width is designed for optimal sealing performance. Manufactured by Oetiker Inc., this clamp features a tongue-in-groove design that ensures a complete 360deg; seal, making it well-suited for silicon, vinyl, and polyurethane lines.

Constructed from stainless steel, it offers durability and corrosion resistance. The clamp's smooth inner band prevents damage to low durometer and thin-walled hose and tubing. With a nominal size of 0.875 inches and a width of 0.276 inches, this high-quality clamp accommodates a clamping range from 0.764 to 0.890 inches.

Ideal for applications requiring resilient strength, the one-ear clamp design holds firmly against pressure, vibration, and hose shrinkage due to temperature changes or aging. Proper installation involves showing a gap of approximately 1/16 inch, ensuring a secure fit.

MPN: C1ES61

Supplier Part Number: 16700026

Specifications

Clamping Range (in) 0.764 - 0.890	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 0.88	Size 22.6 mm	Supplier Part Number 16700026	Product Weight 0.08 lbs	Alternate Part Numbers Alternate Part Number C1ES61, Alternate Part Number MI-01555308, Alternate Part Number MINO-00691J50995

Similar Products

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010 Stepless Ear Pinch Clamp	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013 Stepless Ear Pinch Clamp	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016 Stepless Ear Pinch Clamp	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700020 Stepless Ear Pinch Clamp	Stainless	18.5 mm	0.719	0.602 - 0.728	0.276
16700026 Stepless Ear Pinch Clamp	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031 Stepless Ear Pinch Clamp	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035 Stepless Ear Pinch Clamp	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009 Stepless Ear Pinch Clamp	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276

Product Questions & Answers (3)

Question by: Keith G on Dec 11, 2025, 5:55 PM

been trying to track down the right size clamp for a vinyl coolant line on a small engine setup, the hose OD runs right around .840 inches. this one gonna work or is that pushing the limits of the range?

Answer by: Customer Support on Dec 13, 2025, 8:04 AM

That measurement falls comfortably within the clamping range on this one, which runs from 0.764 to 0.890 inches. At .840 you have got room on both ends, so it should seat well. One thing worth knowing on the install side: when you crimp it down, you want to see roughly a 1/16 inch gap remaining in the ear after pinching. That little bit of tension is what gives it a spring-like grip against pressure, vibration, and any shrinkage the hose sees over time from heat cycles.

Question by: Stan T on Jun 13, 2025, 7:22 AM

trying to clamp a silicone line right around 7/8, is this the right size or am i gonna fight it?

Answer by: Customer Support on Jun 14, 2025, 6:55 PM

For a 7/8 inch line, the key is the actual outside diameter. This clamp’s working clamping range is 0.764 to 0.890 inches, with a nominal size of 0.875 inch, so it fits as long as your hose or tubing OD lands in that range.

Question by: Lynn A on Nov 25, 2025, 7:59 AM

What size tool do I need to get these clamps on right?

Answer by: Customer Support on Nov 27, 2025, 6:32 AM

Oetiker recommends using their own pincers or a similar style approved by them to make sure these clamps get a proper grip.
