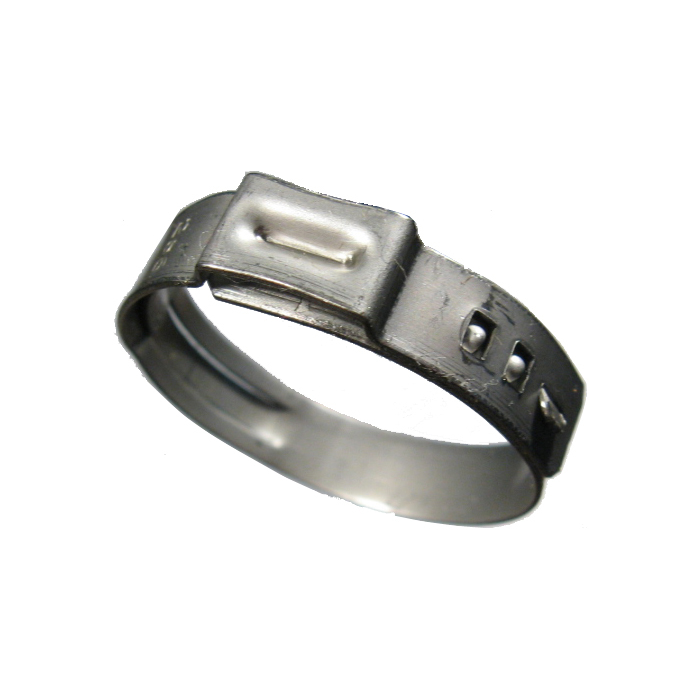

Stepless Ear Pinch Clamp, Stainless, 0.882 - 1.008 Inch Clamping Range, 0.276 Inch Width

Description & Features

The Stepless Ear Pinch Clamp, Stainless, 0.882 - 1.008 Inch Clamping Range, 0.276 Inch Width by Oetiker Inc. offers reliable performance for various industrial and technical applications.

With a unique tongue-in-groove design, this clamp ensures a complete 360deg; seal, making it suitable for low durometer and thin-walled hose and tubing, including silicon, vinyl and polyurethane lines. The smooth inner band protects the hose from damage.

Constructed from stainless steel, this clamp guarantees durability and resistance to corrosion. Its clamping range of 0.882 - 1.008 inches and width of 0.276 inches make it adaptable for different sizes and requirements.

Installation is straightforward: the optimal configuration includes a gap of approximately 1/16 inch to maintain resilient strength, adapting to pressure, vibration and potential shrinkage caused by temperature changes.

Product Model Label: Hose Clamps & Ferrules

Supplier Part Number: 16700031

Specifications

Clamping Range (in) 0.882 - 1.008	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Materials Stainless	Nominal Size 1	Size 25.6 mm	Supplier Part Number 16700031	Product Weight 0.08 lbs	Alternate Part Numbers Alternate Part Number C1ES62, Alternate Part Number MI-01555309, Alternate Part Number MINO-00691J50996

Similar Products

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010 Stepless Ear Pinch Clamp	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013 Stepless Ear Pinch Clamp	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016 Stepless Ear Pinch Clamp	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700020 Stepless Ear Pinch Clamp	Stainless	18.5 mm	0.719	0.602 - 0.728	0.276
16700026 Stepless Ear Pinch Clamp	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031 Stepless Ear Pinch Clamp	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035 Stepless Ear Pinch Clamp	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009 Stepless Ear Pinch Clamp	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276

Product Questions & Answers (1)

Question by: Keith G on Dec 13, 2025, 7:45 AM

got some thin-wall polyurethane lines i need to clamp down and keep sealed tight. this the right kind of clamp for that?

Answer by: Customer Support on Dec 14, 2025, 11:49 AM

Polyurethane is exactly the kind of tubing this clamp is built around. The smooth inner band keeps the hose surface from getting nicked or pinched during installation, and the tongue-in-groove design closes into a full 360-degree seal all the way around. For thin-walled or low durometer lines, that even clamping pressure matters a lot, and this one delivers it without biting into the material.
