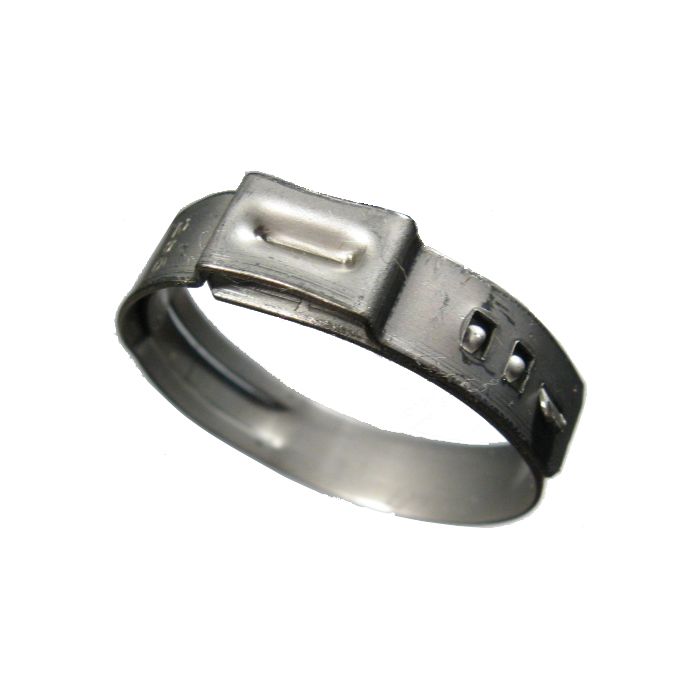

Stepless Ear Pinch Clamps

Description & Features

Application	For low durometer and/or thin-walled hose and tubing. Well suited for silicon, vinyl and polyurethane lines. The smooth inner band prevents damage to the hose while the unique tongue-in-groove design provides a complete 360° seal.
Installation	1-Ear clamps are best installed when the clamp shows a gap of approximately 1/16 inch. This builds a resilient strength into the clamp in a spring-like action to hold against pressure, vibration and hose shrinkage due to temperature changes or aging. (If a clamp ear can be closed all the way, the clamp size selected is probably too big and the next smaller clamp should be used).
Note	To insure a proper grip, Oetiker clamps should be installed with either Oetiker Pincers or a similar style of pincer approved by Oetiker, Inc.

Model Number	Materials	Size	Nominal Size	Clamping Range (in)	Width (in)
16700010 Stepless Ear Pinch Clamp	Stainless	13.3 mm	0.5	0.425 - 0.524	0.276
16700013 Stepless Ear Pinch Clamp	Stainless	14.5 mm	0.5625	0.472 - 0.571	0.276
16700016 Stepless Ear Pinch Clamp	Stainless	15.7 mm	0.625	0.520 - 0.618	0.276
16700020 Stepless Ear Pinch Clamp	Stainless	18.5 mm	0.719	0.602 - 0.728	0.276
16700026 Stepless Ear Pinch Clamp	Stainless	22.6 mm	0.875	0.764 - 0.890	0.276
16700031 Stepless Ear Pinch Clamp	Stainless	25.6 mm	1	0.882 - 1.008	0.276
16700035 Stepless Ear Pinch Clamp	Stainless	28.6 mm	1.125	1.004 - 1.126	0.276
16701009 Stepless Ear Pinch Clamp	Stainless (Degreased)	17.0 mm	0.6875	0.571 - 0.669	0.276
