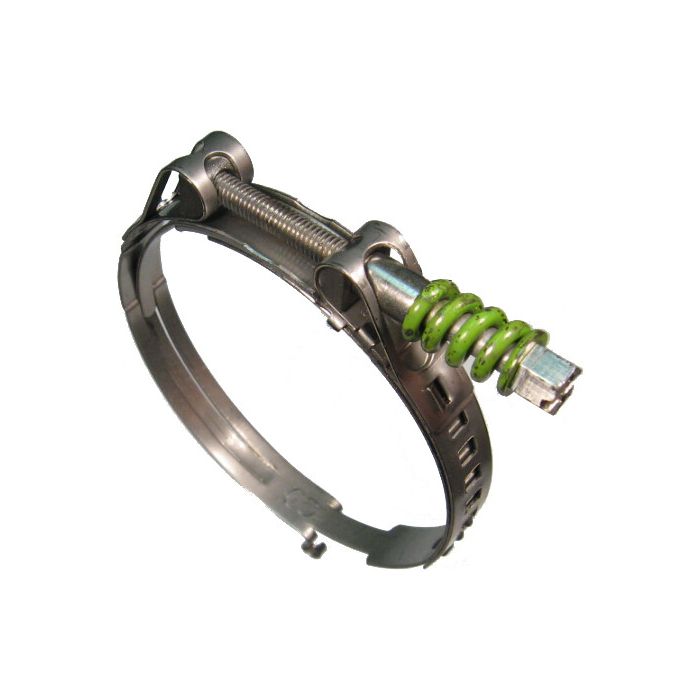

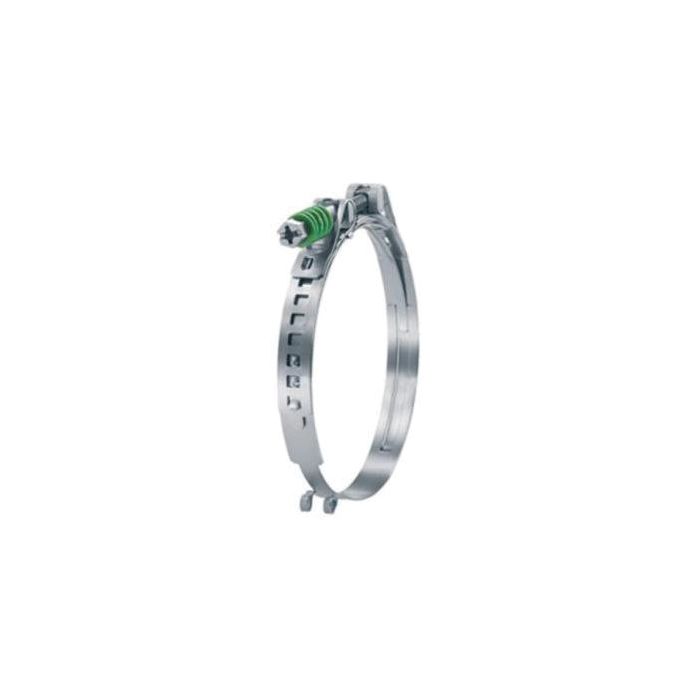

Stepless Spring Clamp For Thermal Cycle Applications, 2.375 - 2.75 Inch Clamping Range, 0.35 Inch Width

Description & Features

Designed for thermal cycle applications, this Oetiker clamp uses an all 300 AISI series stainless steel construction with a tongue-in-groove design that delivers a complete 360° seal around the hose. The spring mechanism automatically compensates for thermal expansion, contraction, and vibration, which prevents cold water leaks without manual adjustment. Its low installation torque requirement of 12–18 lb-in reduces stress on delicate silicone hoses during fitting.

The Stepless Spring Clamp For Thermal Cycle Applications, 2.375 - 2.75 Inch Clamping Range, 0.35 Inch Width is suited for use on radiators, thermostat-to-water-pump connections, engine block connections, water pump-to-oil cooler lines, and heater hose applications. The clamp is self-tightening, lightweight, adjustable, and fully reusable. Installation involves engaging all tabs into the tightest window position before tightening the screw until the spring is fully compressed, then adding three additional full revolutions to achieve proper torque, confirmed by a minimum 1/8 inch gap between the two D-Nuts.

SKU: 17800182

Supplier Part Number (MPN): 17800182

Alternate Part Numbers: C1ZU30, MI-06960089, MINO-00691X45844

Specifications

Clamping Range (in) 2.375 - 2.75	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Supplier Part Number 17800182	Torque Rating 12-18 lb-in	Torque Rating 12-18 lb-in	Product Weight 0.06 lbs	Alternate Part Numbers Alternate Part Number C1ZU30, Alternate Part Number MI-06960089, Alternate Part Number MINO-00691X45844

Similar Products

Model Number	Clamping Range (in)	Torque Rating	Width (in)
17800178 Stepless Spring Clamp	1.6875 - 1.9375	12-18 lb-in	0.35
17800182 Stepless Spring Clamp	2.375 - 2.75	12-18 lb-in	0.35
17800184 Stepless Spring Clamp	2.75 - 3.125	12-18 lb-in	0.35
17800185 Stepless Spring Clamp	2.9375 - 3.3125	12-18 lb-in	0.35
17800186 Stepless Spring Clamp	3.125 - 3.50	12-18 lb-in	0.35

Product Questions & Answers (3)

Question by: Billy K on Nov 10, 2025, 9:00 PM

What size range of hose will this clamp fit on?

Answer by: Customer Support on Nov 12, 2025, 4:24 PM

It's designed for hoses with an outside diameter between 2.375 and 2.75 inches.

Question by: Duane M on Aug 2, 2025, 2:16 PM

got a radiator hose that measures right around 2-1/2 inches, is this clamp in the right ballpark?

Answer by: Customer Support on Aug 4, 2025, 8:57 AM

Fit comes down to the clamping range, and this one covers 2.375 to 2.75 inches. A hose sitting around 2-1/2 inches falls inside that range, so it is the right size range for that diameter.

Question by: Joyce C on Jun 30, 2025, 8:17 AM

does this clamp work on silicone hoses or is it gonna be too tight and mess up the hose material

Answer by: Customer Support on Jul 2, 2025, 6:12 AM

Low installation torque is one of the things that makes this clamp a good fit for silicone hoses. The torque range runs 12 to 18 lb-in, which keeps stress on the hose material low during installation. The spring action also means it adjusts continuously as the hose expands and contracts with heat cycles, so you're not dealing with a fixed clamp that either loosens up or bites in too hard over time. Just make sure your hose falls somewhere in the 2.375 to 2.75 inch range before ordering.
