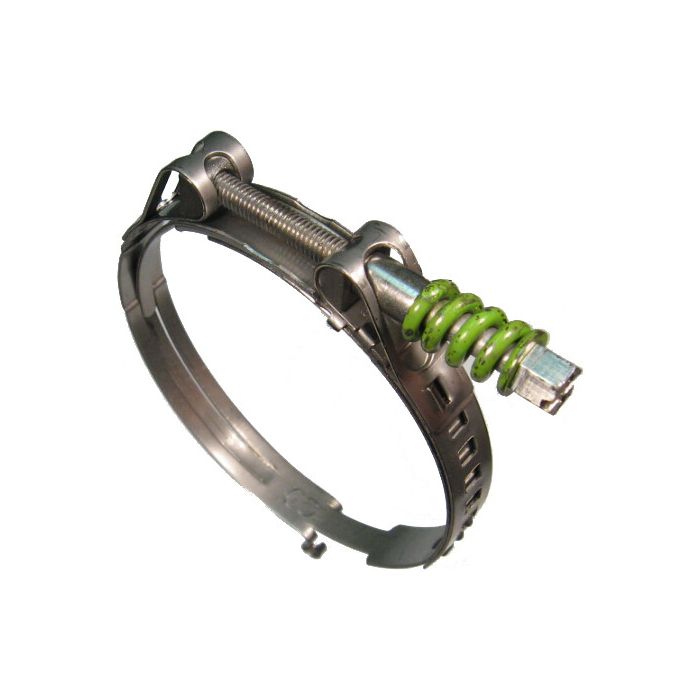

Stepless Spring Clamp For Thermal Cycle Applications, 3.125 - 3.50 Inch Clamping Range, 0.35 Inch Width

Description & Features

The Oetiker stepless spring clamp offers robust and dependable clamping for thermal cycle applications. Designed with a clamping range of 3.125 to 3.50 inches and a width of 0.35 inches, it features a low installation torque requirement, minimizing stress and potential damage to delicate silicone hoses.

Its all 300 AISI series stainless steel construction ensures durability and longevity. The tongue-in-groove design provides a complete 360deg; seal around the hose, while the spring automatically adjusts to thermal expansion, contraction, and vibration, preventing cold water leaks.

Key applications include use on radiators, thermostat to water pump connections, heater hoses, and oil coolers. The self-tightening, lightweight, adjustable, and reusable clamp is easy to install with a step-by-step process ensuring a secure fit.

Product Model Label: Hose Clamps & Ferrules

Supplier Part Number: 17800186

Specifications

Clamping Range (in) 3.125 - 3.50	Brand Oetiker Inc.	Brand Oetiker	Pack Size 1.00	UOM EA	Supplier Part Number 17800186	Torque Rating 12-18 lb-in	Torque Rating 12-18 lb-in	Product Weight 0.06 lbs	Alternate Part Numbers Alternate Part Number C1ZU27, Alternate Part Number MI-08703103, Alternate Part Number MINO-00691X98645

Similar Products

Model Number	Clamping Range (in)	Torque Rating	Width (in)
17800178 Stepless Spring Clamp	1.6875 - 1.9375	12-18 lb-in	0.35
17800182 Stepless Spring Clamp	2.375 - 2.75	12-18 lb-in	0.35
17800184 Stepless Spring Clamp	2.75 - 3.125	12-18 lb-in	0.35
17800185 Stepless Spring Clamp	2.9375 - 3.3125	12-18 lb-in	0.35
17800186 Stepless Spring Clamp	3.125 - 3.50	12-18 lb-in	0.35

Product Questions & Answers (2)

Question by: Billy R on Jan 16, 2026, 4:38 PM

What size range of hose will this clamp work on?

Answer by: Customer Support on Jan 17, 2026, 9:54 PM

This clamp fits hoses with an outer diameter between 3.125 and 3.5 inches.

Question by: Ronnie H on Apr 19, 2025, 1:56 PM

does this clamp work on silicone hoses without tearing em up during install? those things can be real finicky if you crank down too hard

Answer by: Customer Support on Apr 20, 2025, 4:41 PM

Silicone hoses are exactly what this clamp was built around. The installation torque requirement is intentionally low, which keeps you from stressing or damaging the hose material during tightening. You tighten the screw until the spring is fully compressed, then add three more full turns. At that point there should be a small gap of at least 1/8 inch between the two D-Nuts, which tells you the torque is right and the hose is not being overloaded. The torque range is 12 to 18 lb-in, so nothing excessive.
