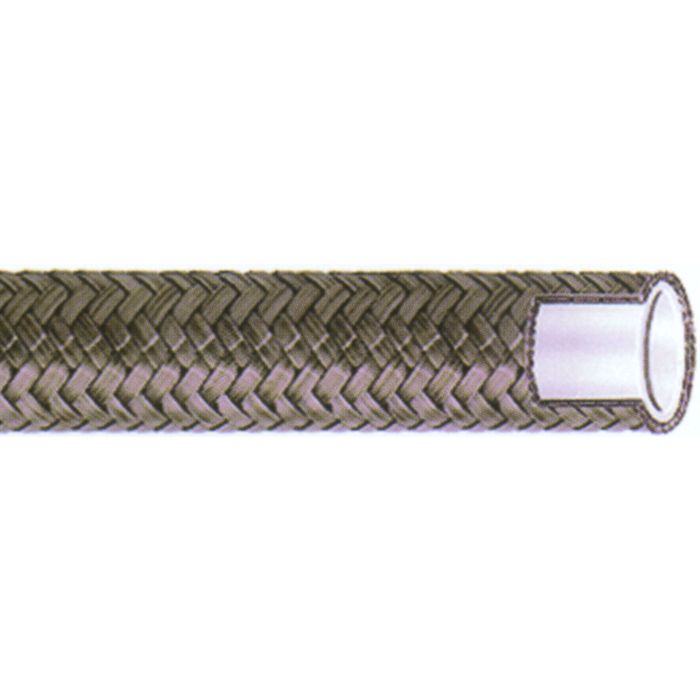

STW Series Teflon Tube Stainless Steel Braid Hose
Description & Features
| Application | Hot air, steam, compressor discharge and most chemical applications. Not recommended for steam-cold water cycling. Please review the general guidelines for selection, installation and maintenance of hose assemblies starting on |
| Construction | Extruded Teflon® tube with stainless steel single wire braid. |
| Note | Maximum negative pressure shown for -16 and larger are suitable for hose which has suffered no external damage or kinking. If greater negative pressures are required for -16 and larger hoses, the use of an internal support coil is recommended. Use of an internal support coil in -06 and larger Teflon® hose is recommended for tube support where extended or continuous service at high temperature together with low or negative pressure is expected. |
| Temperature Range | -65°F to 450°F. |
Products
| Model Number | Materials | Hose I.D. | Hose O.D. | Maximum Operating Pressure | Burst Pressure | Minimum Bend Radius | Vacuum Service | Reel Qty (ft) | Price | Action |
|---|---|---|---|---|---|---|---|---|---|---|
S-4TW316SS STW Series Stainless Braid Hose |
316SS |
0.19 |
0.32 |
3000 |
|
2 |
28 |
Rolls Only |
|
