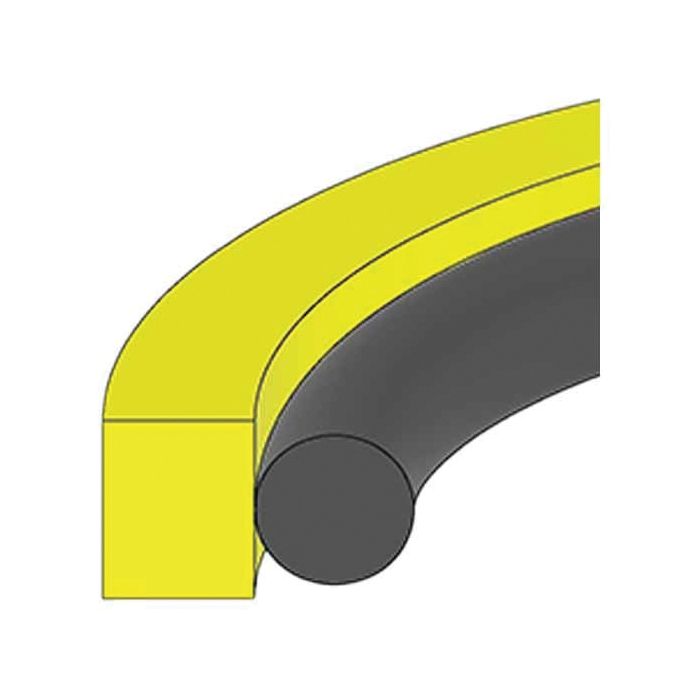

Style 1400 Glass-Filled PTFE Piston Seal, 1.50 Inch Bore Diameter, 1.24 Inch Groove Diameter, Inch Groove Width

Description & Features

This Style 1400 Glass-Filled PTFE Piston Seal is designed for a 1.50 inch bore diameter and a 1.24 inch groove diameter. It features a 15% glass-filled PTFE seal with a rubber energizer for reliable performance.

This piston seal is suitable for applications with pressures ranging from 0 to 5,000 PSI and temperatures from -40°F to 220°F. The bore tolerance is ±0.002 inches, groove width tolerance is ±0.002 inches, cross section tolerance is ±0.005 inches, and seal height tolerance is ±0.005 inches.

SKU: PS1400-24

Supplier Part Number (MPN): PS1400-24

Alternate Part Numbers: C1DH42, MI-01034855, MINO-00407X30005

Specifications

Bore 1.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.24	Groove Width Tolerance (in) ±0.002	Piston Dia. F 1.50	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.005	Supplier Part Number PS1400-24	Alternate Part Numbers Alternate Part Number C1DH42, Alternate Part Number MI-01034855, Alternate Part Number MINO-00407X30005	Product Weight 0.01 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002

Product Questions & Answers (1)

Question by: Steve B on Jul 25, 2025, 12:53 PM

got a cylinder with a 1.50 bore. is this the right piston seal for that, or am i missin somethin?

Answer by: Customer Support on Jul 27, 2025, 6:14 AM

Fit comes down to the bore and groove numbers. This Style 1400 seal is sized for a 1.50 inch bore and a 1.24 inch groove diameter, with a listed piston diameter of 1.497 inches. The tolerances given are bore ±0.002 inches and piston diameter ±0.001 inches, so it is meant to run in a pretty tight, defined setup.
