Style 1400 Glass-Filled PTFE Piston Seal, 1.63 Inch Bore Diameter, 1.23 Inch Groove Diameter, Inch Groove Width

Description & Features

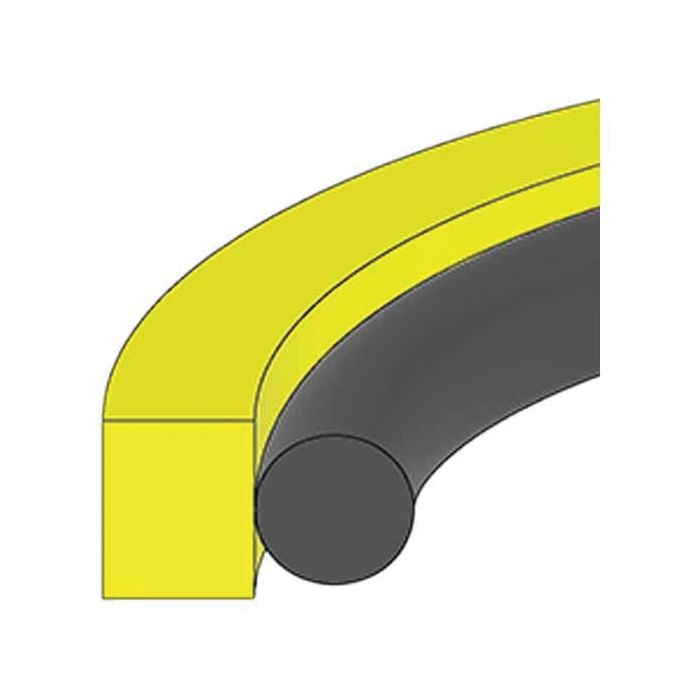

This Style 1400 Glass-Filled PTFE Piston Seal from Hercules Sealing Products provides reliable sealing performance in hydraulic applications. Constructed from 15% glass-filled PTFE, the seal is energized by a rubber component to maintain contact force. It accommodates a bore diameter of 1.625 inches with a tolerance of ±0.002 inches, and fits a groove diameter of 1.233 inches with a groove width tolerance of ±0.002 inches.

The Style 1400 Glass-Filled PTFE Piston Seal is suitable for pressures ranging from 0 to 5,000 PSI and temperatures from -40°F to 220°F. It is designed for a piston diameter of 1.622 inches, with a piston diameter tolerance of ±0.001 inches.

SKU: PS1400-26

Supplier Part Number (MPN): PS1400-26

Alternate Part Numbers: C1DH43, MI-01034885, MINO-00407X30006

Specifications

Brand HERCULES® SEALING PRODUCTS	Additional Information 0 to 5000 psi Pressure Rating	Dimensions 0.109 in H	Inside Diameter 1.23 in	Material Glass Filled PTFE/NBR	Series PS1400 Series

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002

Product Questions & Answers (3)

Question by: Glen H on Nov 8, 2025, 7:20 PM

So this seal fits into a groove that's 1.233 inches across, right? Just want to make sure I'm reading that correctly.

Answer by: Customer Support on Nov 10, 2025, 2:10 PM

That's correct. This seal is designed to fit snugly into a groove with a diameter of 1.233 inches. The groove width tolerance is ±0.002 inches, so make sure your groove is within that range for the best fit.

Question by: Dustin F on Jan 13, 2026, 5:41 PM

got a cylinder with a 1.625 bore. is this style 1400 seal the right size or am i off a hair

Answer by: Customer Support on Jan 15, 2026, 8:02 AM

Fit comes down to the bore, piston, and groove numbers. This seal is sized for a 1.625 inch bore with a ±0.002 inch tolerance, and it pairs with a 1.622 inch piston diameter with a ±0.001 inch tolerance. It also fits a 1.233 inch groove diameter, with the groove width held to ±0.002 inch.

Question by: Daryl C on Sep 13, 2025, 6:42 PM

what's the temp range on this seal? got equipment that sees both cold mornings and pretty hot afternoon cycles and just want to make sure it'll hold up

Answer by: Customer Support on Sep 15, 2025, 10:13 AM

Rated from -40°F up to 220°F, so it covers a solid spread on both ends. Cold startups and warm running conditions through a full workday should fall well within that window.
