Style 1400 Glass-Filled PTFE Piston Seal, 2.25 Inch Bore Diameter, 1.86 Inch Groove Diameter, Inch Groove Width

Description & Features

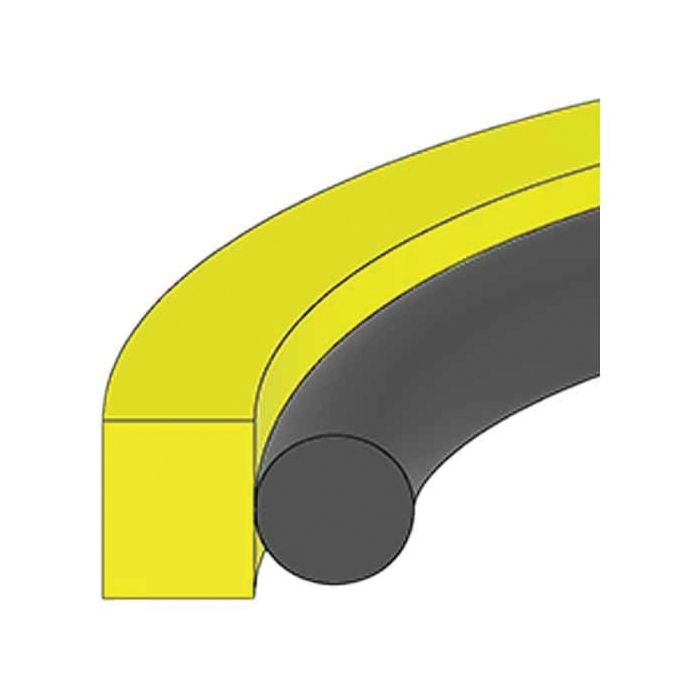

Designed for hydraulic cylinders operating at pressures up to 5,000 PSI, the Style 1400 Glass-Filled PTFE Piston Seal combines a 15% glass-filled PTFE sealing element with a rubber energizer to maintain consistent contact and sealing force across a wide range of conditions. The glass fill improves wear resistance and dimensional stability compared to unfilled PTFE, making this seal well-suited for demanding reciprocating piston applications.

This seal fits a 2.25-inch bore diameter with a piston diameter of 2.246 inches and a groove diameter of 1.858 inches. The operating temperature range spans -40°F to 220°F, supporting use in both cold-start and elevated-temperature hydraulic systems. Manufactured by Hercules Sealing Products under catalog number C1DH47.

SKU: PS1400-36

Supplier Part Number (MPN): PS1400-36

Alternate Part Numbers: C1DH47, MI-01035072, MINO-00407X30014

Specifications

Bore 2.25	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.010	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.86	Groove Width Tolerance (in) ±0.002	Piston Dia. F 2.25	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.010	Supplier Part Number PS1400-36	Alternate Part Numbers Alternate Part Number C1DH47, Alternate Part Number MI-01035072, Alternate Part Number MINO-00407X30014	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002
