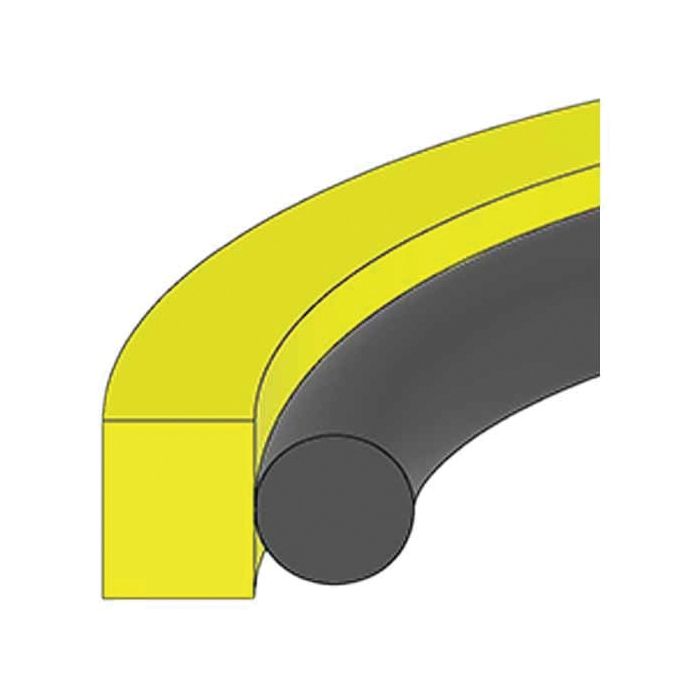

Style 1400 Glass-Filled PTFE Piston Seal, 2.50 Inch Bore Diameter, 2.11 Inch Groove Diameter, Inch Groove Width

Description & Features

Rated for pressures up to 5,000 PSI and a temperature range of -40°F to 220°F, this seal is well-suited for demanding hydraulic cylinder applications. The Style 1400 Glass-Filled PTFE Piston Seal features a 15% glass-filled PTFE sealing element paired with a rubber energizer, providing reliable dynamic sealing performance across a wide range of operating conditions.

Designed for a 2.50 inch bore diameter, the seal fits a groove diameter of 2.108 inches and a piston diameter of 2.496 inches. Manufactured by Hercules Sealing Products, it carries catalog number C1DH48 for cross-reference purposes.

SKU: PS1400-40

Supplier Part Number (MPN): PS1400-40

Alternate Part Numbers: C1DH48, MI-01035114, MINO-00407X30016

Specifications

Bore 2.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.010	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.11	Groove Width Tolerance (in) ±0.002	Piston Dia. F 2.50	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.010	Supplier Part Number PS1400-40	Alternate Part Numbers Alternate Part Number C1DH48, Alternate Part Number MI-01035114, Alternate Part Number MINO-00407X30016	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002

Product Questions & Answers (3)

Question by: Scott K on Nov 9, 2025, 6:55 AM

got a cylinder with a 2.50 bore, is this Style 1400 seal the right size for it?

Answer by: Customer Support on Nov 10, 2025, 3:07 PM

It matches a 2.50 inch bore and is intended to run on a 2.496 inch piston diameter with a ±0.001 tolerance. The groove diameter spec is 2.108 inches, and the bore tolerance called out is ±0.002, so it is aimed at a fairly tight, standard hydraulic gland setup.

Question by: Shane R on Sep 20, 2025, 3:58 PM

what temp range does this seal handle? got some equipment runnin pretty hot and need to know before i order

Answer by: Customer Support on Sep 22, 2025, 11:01 AM

Rated from -40°F up to 220°F, so it covers a solid range on both ends. If your equipment stays under that 220°F ceiling, you're in good shape. Anything pushing past that threshold regularly would be outside what this seal is built for.

Question by: Vince S on Jun 30, 2025, 6:24 AM

So, this seal fits a 2.5 inch bore, right? Just wanna make sure before I order.

Answer by: Customer Support on Jul 2, 2025, 6:39 AM

That's correct. This Style 1400 piston seal is designed for a 2.50 inch bore diameter.
