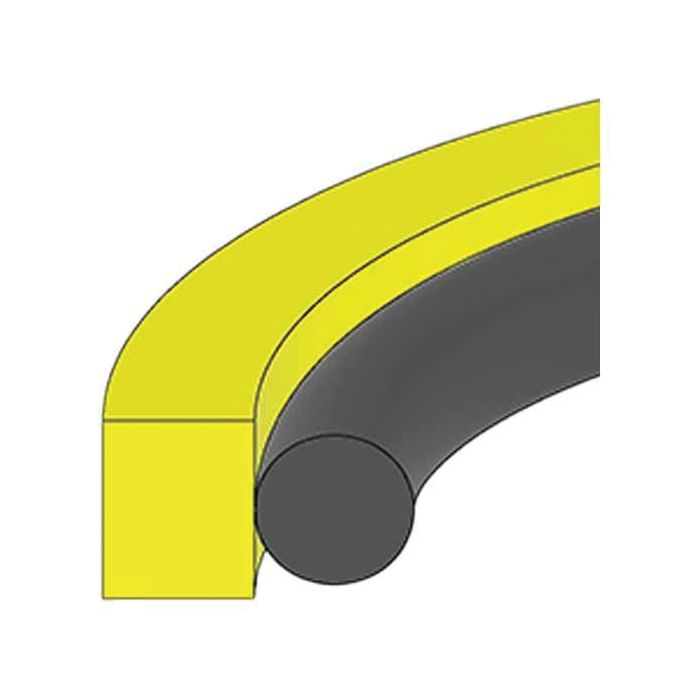

Style 1400 Glass-Filled PTFE Piston Seal, 3.75 Inch Bore Diameter, 3.36 Inch Groove Diameter, Inch Groove Width

Description & Features

Designed for hydraulic cylinder applications, this piston seal is constructed from 15% glass-filled PTFE with a rubber energizer, providing reliable sealing performance across a pressure range of 0 to 5,000 PSI and temperatures from -40°F to 220°F. The Style 1400 Glass-Filled PTFE Piston Seal, 3.75 Inch Bore Diameter, 3.36 Inch Groove Diameter features a bore tolerance of ±0.002 inches and a piston diameter of 3.746 inches with a tolerance of ±0.001 inches. The groove diameter measures 3.358 inches, with cross section and seal height tolerances each held to ±0.010 inches. Manufactured by Hercules Sealing Products and cataloged under number C1DH53, this seal is suited for industrial hydraulic equipment where dimensional precision and material durability are required.

SKU: PS1400-60

Supplier Part Number (MPN): PS1400-60

Alternate Part Numbers: C1DH53, MI-01035451, MINO-00407X30032

Specifications

Bore 3.75	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.010	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 3.36	Groove Width Tolerance (in) ±0.002	Piston Dia. F 3.75	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.010	Supplier Part Number PS1400-60	Alternate Part Numbers Alternate Part Number C1DH53, Alternate Part Number MI-01035451, Alternate Part Number MINO-00407X30032	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002
