Style 1400 Glass-Filled PTFE Piston Seal, 4.50 Inch Bore Diameter, 4.11 Inch Groove Diameter, Inch Groove Width

Description & Features

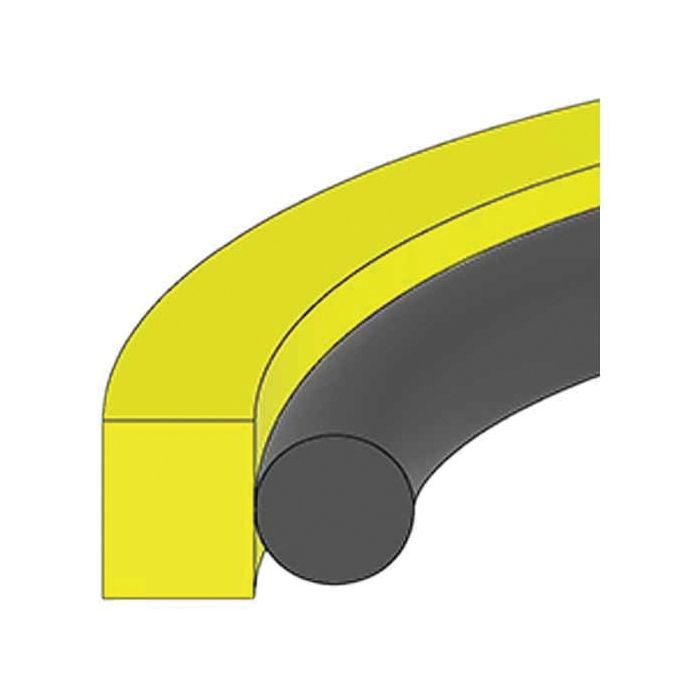

This Style 1400 Glass-Filled PTFE Piston Seal from Hercules Sealing Products is suitable for use in a variety of hydraulic applications. Constructed from 15% glass-filled PTFE with a rubber energizer, it can withstand pressures from 0 to 5,000 PSI and temperatures from -40°F to 220°F.

Designed for a 4.50 inch bore diameter and a 4.11 inch groove diameter, this Style 1400 Glass-Filled PTFE Piston Seal offers reliable performance. The piston diameter measures 4.496 inches, with a tolerance of ±0.001 inches, while the groove diameter is 4.108 inches. The bore tolerance is ±0.002 inches, cross-section tolerance is ±0.010 inches, and groove width tolerance is ±0.002 inches.

SKU: PS1400-72

Supplier Part Number (MPN): PS1400-72

Alternate Part Numbers: C1DH56, MI-01035671, MINO-00407X30044

Specifications

Bore 4.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.010	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 4.11	Groove Width Tolerance (in) ±0.002	Piston Dia. F 4.50	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.010	Supplier Part Number PS1400-72	Alternate Part Numbers Alternate Part Number C1DH56, Alternate Part Number MI-01035671, Alternate Part Number MINO-00407X30044	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002

Product Questions & Answers (2)

Question by: Billy B on Aug 9, 2025, 8:04 PM

Seal's rated up to 5,000 PSI, is that the burst limit or the actual working pressure range for normal operation?

Answer by: Customer Support on Aug 11, 2025, 7:05 AM

That 0 to 5,000 PSI range reflects the working pressure this seal is built to handle in regular hydraulic service, not a burst or peak spike rating. The glass-filled PTFE construction paired with the rubber energizer keeps the seal functional across that full range, so you're not having to derate it for everyday use.

Question by: Earl S on Apr 7, 2025, 6:11 AM

What's the max pressure this seal can handle?

Answer by: Customer Support on Apr 9, 2025, 6:51 AM

It's rated to handle pressures from 0 up to 5,000 PSI.
