Style 1400 Glass-Filled PTFE Piston Seal, 6.00 Inch Bore Diameter, 5.48 Inch Groove Diameter, Inch Groove Width

Description & Features

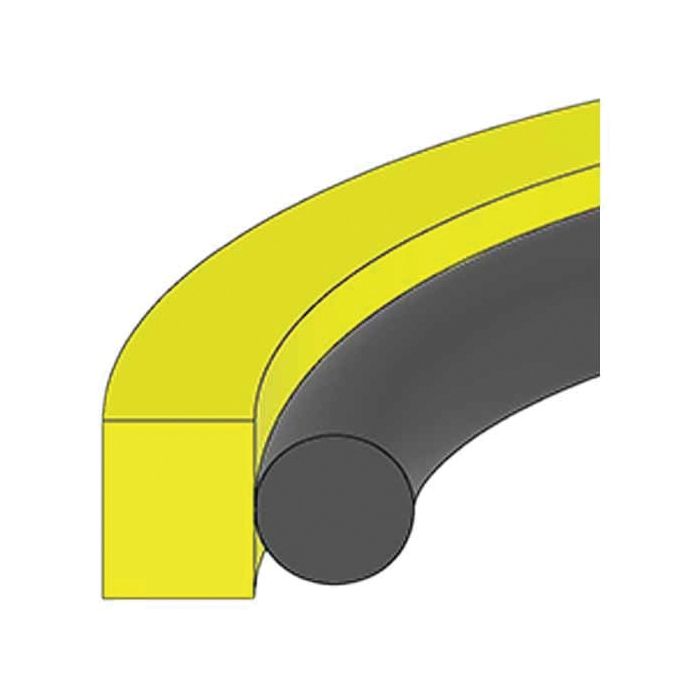

Designed for hydraulic cylinder applications requiring chemical resistance and reliable performance across a wide pressure range, the Style 1400 Glass-Filled PTFE Piston Seal is built for 6.00-inch bore diameters with a groove diameter of 5.482 inches and a piston diameter of 5.996 inches. The seal is constructed from 15% glass-filled PTFE with a rubber energizer, a combination that provides dimensional stability and consistent sealing force under dynamic conditions.

Rated for pressures from 0 to 5,000 PSI and temperatures from -40°F to 220°F, this seal suits a broad range of hydraulic cylinder environments. The glass-filled PTFE construction offers low friction characteristics and resistance to wear, making it well suited for both linear and reciprocating piston applications. Hercules Sealing Products manufactures this seal to tight tolerances, including ±0.002 inches on bore and groove width.

SKU: PS1400-96

Supplier Part Number (MPN): PS1400-96

Alternate Part Numbers: C1DH60

Specifications

Bore 6	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 5.48	Groove Width Tolerance (in) ±0.002	Piston Dia. F 6.00	Piston Dia. Tolerance (in) ±0.001	Seal Height Tolerance (in) ±0.005	Supplier Part Number PS1400-96	Alternate Part Numbers Alternate Part Number C1DH60	Product Weight 0.05 lbs

Similar Products

Model Number	Bore	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Piston Dia. Tolerance (in)	Groove Width Tolerance (in)
PS1400-40 Style 1400 PTFE Piston Seal	2.5	2.108	2.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-56 Style 1400 PTFE Piston Seal	3.5	3.108	3.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-80 Style 1400 PTFE Piston Seal	5	4.608	4.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-24 Style 1400 PTFE Piston Seal	1.5	1.24	1.497	±0.002	±0.005	±0.005	±0.001	±0.002
PS1400-26 Style 1400 PTFE Piston Seal	1.625	1.233	1.622	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-28 Style 1400 PTFE Piston Seal	1.75	1.358	1.747	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-32 Style 1400 PTFE Piston Seal	2	1.608	1.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-36 Style 1400 PTFE Piston Seal	2.25	1.858	2.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-44 Style 1400 PTFE Piston Seal	2.75	2.358	2.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-48 Style 1400 PTFE Piston Seal	3	2.608	2.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-52 Style 1400 PTFE Piston Seal	3.25	2.858	3.246	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-60 Style 1400 PTFE Piston Seal	3.75	3.358	3.746	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-64 Style 1400 PTFE Piston Seal	4	3.608	3.996	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-72 Style 1400 PTFE Piston Seal	4.5	4.108	4.496	±0.002	±0.010	±0.010	±0.001	±0.002
PS1400-96 Style 1400 PTFE Piston Seal	6	5.482	5.996	±0.002	±0.005	±0.005	±0.001	±0.002
