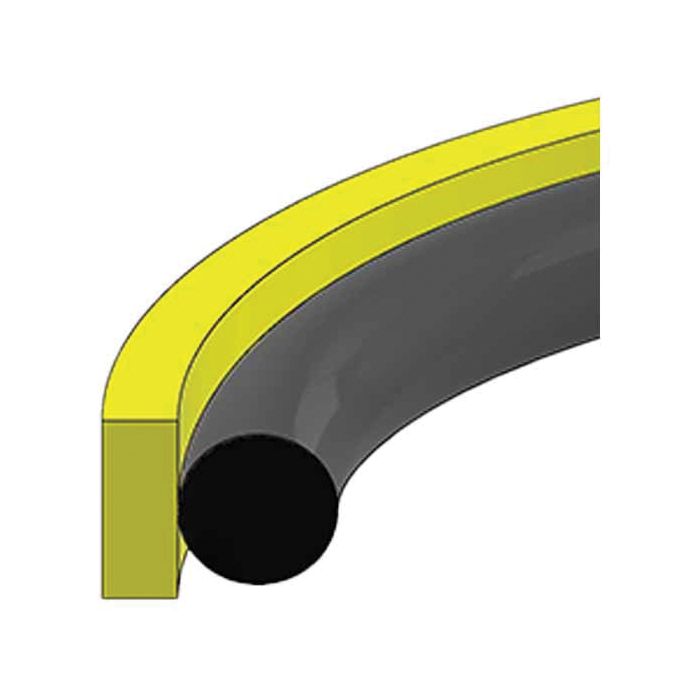

Style 1600 Glass-Filled PTFE Piston Seal, 2.00 Inch Bore Diameter, 1.72 Inch Groove Diameter, Inch Groove Width

Description & Features

Designed for hydraulic cylinder piston applications, the Style 1600 Glass-Filled PTFE Piston Seal offers reliable sealing performance across a pressure range of 0 to 5,000 PSI and a temperature range of -40°F to 220°F. The 2.00-inch bore diameter and 1.72-inch groove diameter make this seal suited for medium-bore cylinder assemblies where dimensional precision is critical.

Constructed from 15% glass-filled PTFE with a rubber energizer, this seal combines low friction with dimensional stability under load. The glass-filled compound provides improved wear resistance compared to virgin PTFE, while the rubber energizer maintains consistent sealing contact pressure. Piston diameter dimensions are given for pistons without wear rings.

Manufactured by Hercules Sealing Products, this seal is cataloged under number C1DH63 and is a direct-fit component for Style 1600 series piston seal configurations.

SKU: PS1600-32

Supplier Part Number (MPN): PS1600-32

Alternate Part Numbers: C1DH63, MI-01036251, MINO-00407X30076

Specifications

Bore 2	Bore Tolerance (in) ±0.001	Cross Section Tolerance (in) +0.005 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.72	Groove Width Tolerance (in) +0.003 / -0	Piston Dia. F 2.00	Piston Dia. Tolerance (in) +0/-0.003	Seal Cross Section C 0.06	Seal Height B 0.12	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1600-32	Alternate Part Numbers Alternate Part Number C1DH63, Alternate Part Number MI-01036251, Alternate Part Number MINO-00407X30076	Product Weight 0.01 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32 Style 1600 PTFE Piston Seal	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36 Style 1600 PTFE Piston Seal	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40 Style 1600 PTFE Piston Seal	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44 Style 1600 PTFE Piston Seal	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48 Style 1600 PTFE Piston Seal	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52 Style 1600 PTFE Piston Seal	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56 Style 1600 PTFE Piston Seal	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64 Style 1600 PTFE Piston Seal	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68 Style 1600 PTFE Piston Seal	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
