Style 1600 Glass-Filled PTFE Piston Seal, 2.25 Inch Bore Diameter, 1.94 Inch Groove Diameter, Inch Groove Width

Description & Features

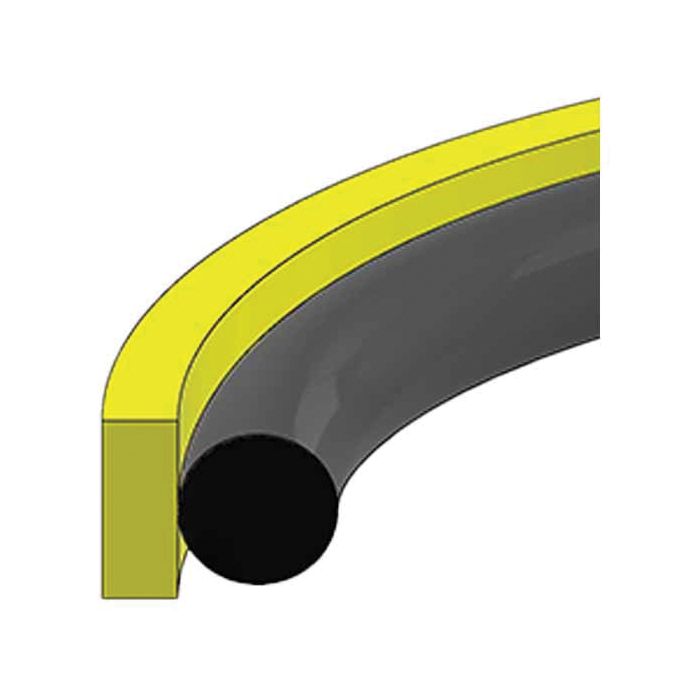

Rated for pressures from 0 to 5,000 PSI and a temperature range of -40°F to 220°F, the Style 1600 Glass-Filled PTFE Piston Seal is a dual-component seal combining a 15% glass-filled PTFE sealing element with a rubber energizer. The glass fill provides dimensional stability and low friction characteristics suited to hydraulic cylinder piston applications.

This seal is designed for a 2.25 inch bore, with a groove diameter of 1.937 inches and a seal cross section of 0.055 inches. Piston diameter is 2.249 inches, with a tolerance of +0.000 / -0.003 inches. Note that piston diameter dimensions apply to pistons without wear rings. Bore tolerance is ±0.001 inches, and groove width tolerance is +0.003 / -0.000 inches.

SKU: PS1600-36

Supplier Part Number (MPN): PS1600-36

Alternate Part Numbers: C1DH64

Specifications

Bore 2.25	Bore Tolerance (in) ±0.001	Cross Section Tolerance (in) +0.005 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 1.94	Groove Width Tolerance (in) +0.003 / -0	Piston Dia. F 2.25	Piston Dia. Tolerance (in) +0/-0.003	Seal Cross Section C 0.06	Seal Height B 0.12	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1600-36	Alternate Part Numbers Alternate Part Number C1DH64	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32 Style 1600 PTFE Piston Seal	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36 Style 1600 PTFE Piston Seal	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40 Style 1600 PTFE Piston Seal	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44 Style 1600 PTFE Piston Seal	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48 Style 1600 PTFE Piston Seal	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52 Style 1600 PTFE Piston Seal	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56 Style 1600 PTFE Piston Seal	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64 Style 1600 PTFE Piston Seal	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68 Style 1600 PTFE Piston Seal	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004

Product Questions & Answers (2)

Question by: Judy H on Aug 10, 2025, 4:14 PM

trying to match up a piston seal i pulled out, is this style 1600 one the right fit for a 2.25 bore and 1.937 groove dia?

Answer by: Customer Support on Aug 12, 2025, 6:37 AM

It matches a 2.25 inch bore and a 1.937 inch groove diameter, with a 0.055 inch seal cross section and 0.12 inch seal height. The piston diameter callout is 2.249 inches with a +0.000 / -0.003 tolerance, and those piston dimensions are for pistons without wear rings.

Question by: Tommy J on Dec 13, 2025, 7:48 PM

Got a 2.25 inch bore cylinder that needs a new piston seal, this one fit right without any modifications?

Answer by: Customer Support on Dec 15, 2025, 6:03 AM

For a 2.25 inch bore, this seal is built around a piston diameter of 2.249 inches with a tolerance of +0.000 / -0.003 inches, and the bore tolerance runs ±0.001 inches. As long as your cylinder falls within those ranges, it should seat properly without any machining or rework. One thing worth noting: those piston diameter dimensions are for pistons without wear rings, so if yours has wear rings already installed, the fit math will be different.
