Style 1600 Glass-Filled PTFE Piston Seal, 2.75 Inch Bore Diameter, 2.35 Inch Groove Diameter, Inch Groove Width

Description & Features

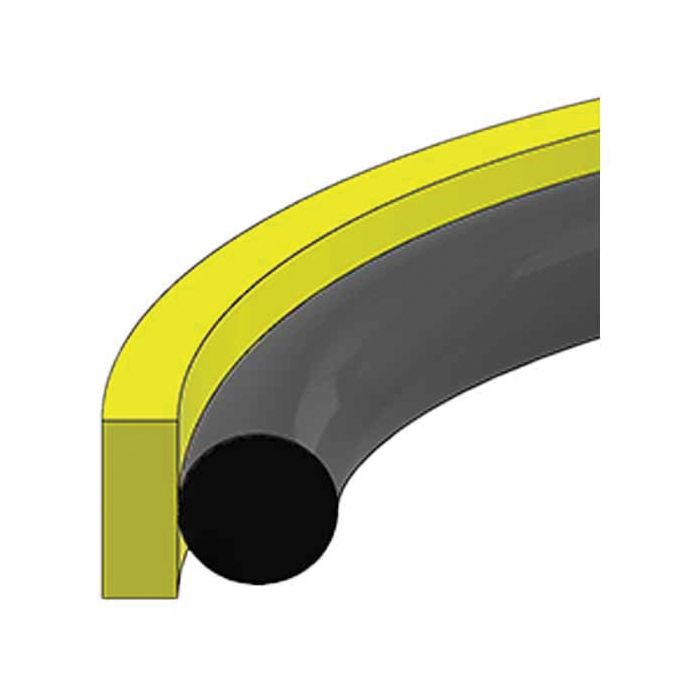

Designed for hydraulic cylinder applications, the Style 1600 Glass-Filled PTFE Piston Seal handles bore diameters of 2.75 inches and is rated for pressures from 0 to 5,000 PSI across a temperature range of -40°F to 220°F. The seal seats into a groove diameter of 2.348 inches and is paired with a rubber energizer that maintains consistent sealing force throughout the operating range.

Construction uses 15% glass-filled PTFE, which provides low friction characteristics and resistance to chemical degradation in demanding hydraulic environments. The seal cross section measures 0.085 inches with a seal height of 0.15 inches. Piston diameter is 2.749 inches, and dimensional tolerances are closely held to support accurate fitment, groove width tolerance is +0.003 / -0 inches, and bore tolerance is ±0.001 inches. Piston diameter dimensions apply to pistons without wear rings.

SKU: PS1600-44

Supplier Part Number (MPN): PS1600-44

Alternate Part Numbers: C1DH66

Specifications

Bore 2.75	Bore Tolerance (in) ±0.001	Cross Section Tolerance (in) +0.005 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.35	Groove Width Tolerance (in) +0.003 / -0	Piston Dia. F 2.75	Piston Dia. Tolerance (in) +0/-0.004	Seal Cross Section C 0.09	Seal Height B 0.15	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1600-44	Alternate Part Numbers Alternate Part Number C1DH66	Product Weight 0.02 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32 Style 1600 PTFE Piston Seal	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36 Style 1600 PTFE Piston Seal	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40 Style 1600 PTFE Piston Seal	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44 Style 1600 PTFE Piston Seal	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48 Style 1600 PTFE Piston Seal	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52 Style 1600 PTFE Piston Seal	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56 Style 1600 PTFE Piston Seal	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64 Style 1600 PTFE Piston Seal	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68 Style 1600 PTFE Piston Seal	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
