Style 1600 Glass-Filled PTFE Piston Seal, 4.00 Inch Bore Diameter, 3.60 Inch Groove Diameter, Inch Groove Width

Description & Features

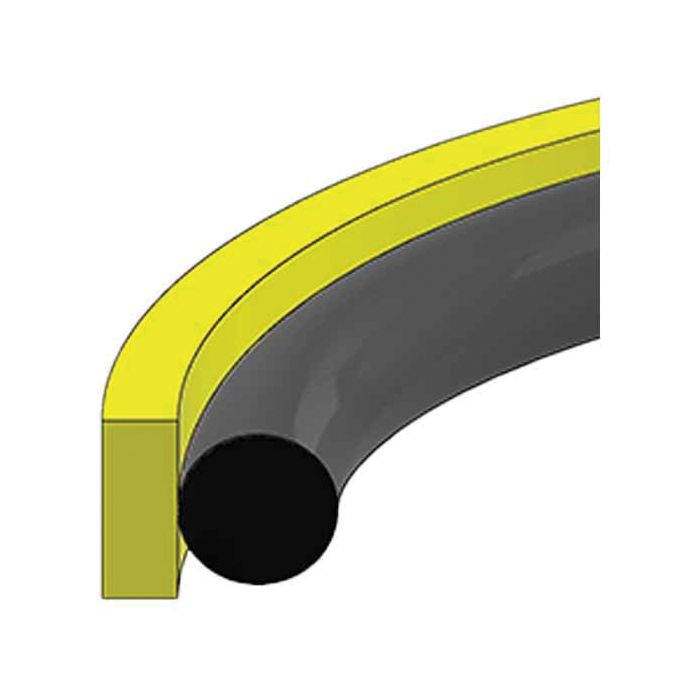

This Style 1600 Glass-Filled PTFE Piston Seal from Hercules Sealing Products is designed for a 4.00 inch bore.

The seal features a 3.60 inch groove diameter and a 0.085 inch seal cross-section. Constructed with a 15% glass-filled PTFE seal and a rubber energizer, it withstands pressures from 0 to 5,000 PSI and temperatures ranging from -40°F to 220°F.

SKU: PS1600-64

Supplier Part Number (MPN): PS1600-64

Alternate Part Numbers: C1DH70

Specifications

Bore 4	Bore Tolerance (in) ±0.001	Cross Section Tolerance (in) +0.005 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 3.60	Groove Width Tolerance (in) +0.003 / -0	Piston Dia. F 4.00	Piston Dia. Tolerance (in) +0/-0.004	Seal Cross Section C 0.09	Seal Height B 0.15	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1600-64	Alternate Part Numbers Alternate Part Number C1DH70	Product Weight 0.04 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32 Style 1600 PTFE Piston Seal	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36 Style 1600 PTFE Piston Seal	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40 Style 1600 PTFE Piston Seal	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44 Style 1600 PTFE Piston Seal	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48 Style 1600 PTFE Piston Seal	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52 Style 1600 PTFE Piston Seal	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56 Style 1600 PTFE Piston Seal	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64 Style 1600 PTFE Piston Seal	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68 Style 1600 PTFE Piston Seal	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004

Product Questions & Answers (2)

Question by: Larry H on Jun 8, 2025, 9:14 AM

trying to swap out an old piston seal, will this one fit a 4.00 bore and 3.60 groove dia?

Answer by: Customer Support on Jun 10, 2025, 6:57 AM

Fit comes down to the bore and groove dimensions, and this seal is sized for a 4.00 inch bore with a 3.60 inch groove diameter. The seal cross section is 0.085 inch, and the matching piston diameter (F) is 3.999 inch with a +0 / -0.004 tolerance.

Question by: Floyd T on May 18, 2025, 6:43 PM

Got a cylinder with a 4-inch bore that needs a new piston seal. This the right one, or do I need to be looking at something else?

Answer by: Customer Support on May 20, 2025, 11:31 AM

For a 4.00 inch bore, this seal is built to fit. The piston diameter it's sized for comes in at 3.999 inches, with a tolerance of +0 / -0.004, so it should drop right into a standard 4-inch piston setup. The groove diameter is 3.60 inches, and the cross-section runs 0.085 inches. As long as your existing groove matches those dimensions, you're in good shape.
