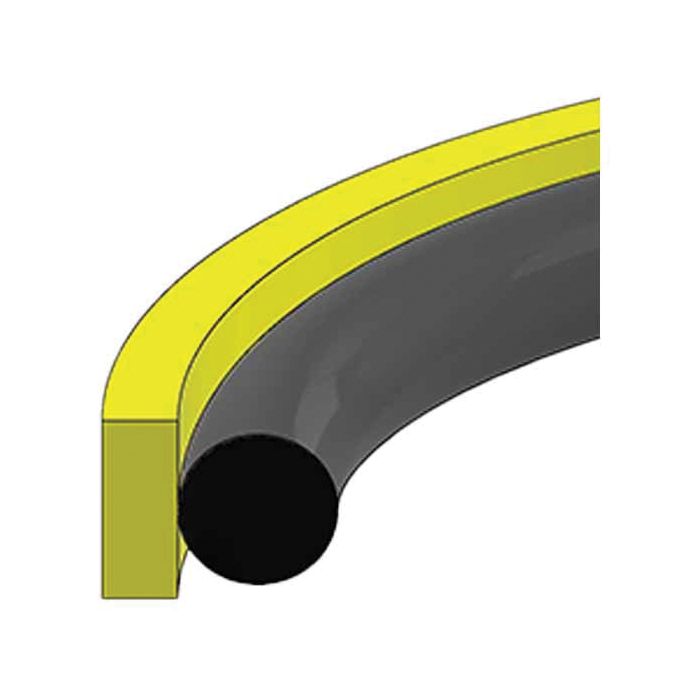

Style 1600 Glass-Filled PTFE Piston Seal, 4.25 Inch Bore Diameter, 3.85 Inch Groove Diameter, Inch Groove Width

Description & Features

This Style 1600 Glass-Filled PTFE Piston Seal is manufactured by Hercules Sealing Products. It has a 4.25 inch bore diameter and a 3.85 inch groove diameter.

The seal features a 15% glass filled PTFE seal and a rubber energizer. It is suitable for pressures ranging from 0 to 5,000 PSI and temperatures from -40°F to 220°F.

SKU: PS1600-68

Supplier Part Number (MPN): PS1600-68

Alternate Part Numbers: C1DH71

Specifications

Bore 4.25	Bore Tolerance (in) ±0.001	Cross Section Tolerance (in) +0.005 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 3.85	Groove Width Tolerance (in) +0.003 / -0	Piston Dia. F 4.25	Piston Dia. Tolerance (in) +0/-0.004	Seal Cross Section C 0.09	Seal Height B 0.15	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1600-68	Alternate Part Numbers Alternate Part Number C1DH71	Product Weight 0.07 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Groove Width Tolerance (in)	Seal Height Tolerance (in)	Bore Tolerance (in)	Cross Section Tolerance (in)	Piston Dia. Tolerance (in)
PS1600-32 Style 1600 PTFE Piston Seal	2	0.12	0.055	1.723	1.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-36 Style 1600 PTFE Piston Seal	2.25	0.12	0.055	1.937	2.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-40 Style 1600 PTFE Piston Seal	2.5	0.12	0.055	2.223	2.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.003
PS1600-44 Style 1600 PTFE Piston Seal	2.75	0.15	0.085	2.348	2.749	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-48 Style 1600 PTFE Piston Seal	3	0.15	0.085	2.603	2.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-52 Style 1600 PTFE Piston Seal	3.25	0.15	0.085	2.853	3.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-56 Style 1600 PTFE Piston Seal	3.5	0.15	0.085	3.103	3.499	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-64 Style 1600 PTFE Piston Seal	4	0.15	0.085	3.6	3.999	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004
PS1600-68 Style 1600 PTFE Piston Seal	4.25	0.15	0.085	3.853	4.249	+0.003 / -0	+0.005 / -0	±0.001	+0.005 / -0	+0/-0.004

Product Questions & Answers (1)

Question by: Neil C on Feb 13, 2026, 7:41 AM

trying to swap out a piston seal, how tight do i need to be on the bore size for this one

Answer by: Customer Support on Feb 14, 2026, 9:36 AM

The bore is 4.25 inches with a stated bore tolerance of plus or minus 0.001 inch. The matching piston diameter is 4.249 inches with a piston diameter tolerance of +0 / -0.004 inch.
