Style 1800 Glass-Filled PTFE Piston Seal, 2.00 Inch Bore Diameter, 1.69 Inch Groove Diameter, Inch Groove Width

Description & Features

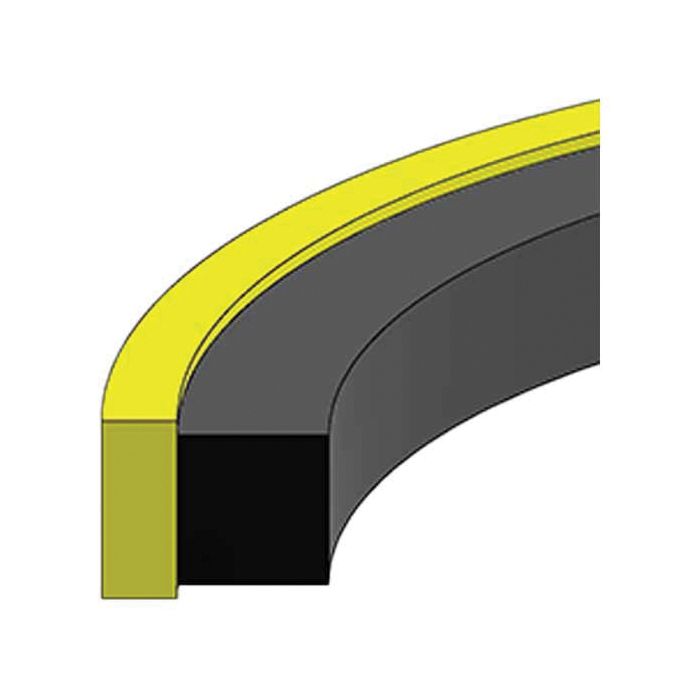

Experience reliable sealing performance with the Hercules Style 1800 Glass-Filled PTFE Piston Seal, designed for a 2.00-inch bore diameter and 1.69-inch groove diameter. This piston seal features a robust construction with 15% glass-filled PTFE material, complemented by a rubber energizer, ensuring durability and efficiency in high-pressure environments up to 5,000 PSI. The seal is engineered to operate effectively in a broad temperature range from -40°F to 220°F, making it suitable for various industrial applications.

The piston seal's precise dimensions include a bore tolerance of ±0.002 inches and a groove width tolerance of ±0.002 inches, providing a secure fit without the need for wear rings. With a seal cross-section of 0.067 inches and a seal height of 0.116 inches, this component is meticulously crafted to meet demanding performance standards. Ideal for use in hydraulic systems, the Hercules Style 1800 offers reliable sealing solutions for industrial needs.

SKU: PS1800-32

Supplier Part Number (MPN): PS1800-32

Alternate Part Numbers: C1DH75

Specifications

Brand HERCULES® SEALING PRODUCTS	Additional Information 0 to 5000 psi Pressure Rating	Dimensions 0.121 in H	Material Glass Filled PTFE/NBR	Series PS1800 Series

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Piston Dia. Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Groove Width Tolerance (in)
PS1800-20 Style 1800 PTFE Piston Seal	1.25	0.116	0.067	0.94	1.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-24 Style 1800 PTFE Piston Seal	1.5	0.116	0.067	1.19	1.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-36 Style 1800 PTFE Piston Seal	2.25	0.116	0.067	1.94	2.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-40 Style 1800 PTFE Piston Seal	2.5	0.116	0.067	2.19	2.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-48 Style 1800 PTFE Piston Seal	3	0.269	0.087	2.44	2.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-56 Style 1800 PTFE Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-64 Style 1800 PTFE Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-68 Style 1800 PTFE Piston Seal	4.25	0.269	0.087	3.69	4.249	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-72 Style 1800 PTFE Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-80 Style 1800 PTFE Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-88 Style 1800 PTFE Piston Seal	5.5	0.362	0.142	4.738	5.499	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002
PS1800-96 Style 1800 PTFE Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002

Product Questions & Answers (3)

Question by: Carl Y on Dec 21, 2025, 3:38 PM

Got a cylinder with a 2-inch bore that needs a new piston seal. Will this one drop right in, or is there more to fitting it than just the bore size?

Answer by: Customer Support on Dec 23, 2025, 8:42 AM

For a 2-inch bore cylinder, the piston diameter this seal is built around is 1.999 inches, with a tolerance of +0 to -0.005 inches. The groove it sits in needs to be 1.69 inches in diameter. One thing worth knowing is that those piston diameter figures assume you're running without wear rings. If your setup uses wear rings, that dimension won't apply the same way. Get those numbers to match up and you'll have a solid fit.

Question by: Stan G on May 15, 2025, 5:57 PM

Reckon this would fit a cylinder with a 2-inch bore? Don't wanna order the wrong thing again.

Answer by: Customer Support on May 17, 2025, 6:32 AM

That's right, this Style 1800 piston seal is made for a 2-inch bore diameter. It's also got a 1.69-inch groove diameter, so be sure to check that measurement too.

Question by: Melvin W on May 20, 2025, 6:01 PM

got a 2.00 bore cylinder, is this Style 1800 seal the right size for it?

Answer by: Customer Support on May 21, 2025, 9:55 PM

For a 2.00 inch bore, this seal matches that bore size and is meant to run with a 1.69 inch groove diameter. It also lists a piston diameter (F) of 1.999 inch with a +0/-0.005 tolerance, and the bore tolerance is ±0.002 inch, so it is set up for a tight, controlled fit.
