Style 1800 Glass-Filled PTFE Piston Seal, 3.50 Inch Bore Diameter, 2.94 Inch Groove Diameter, Inch Groove Width

Description & Features

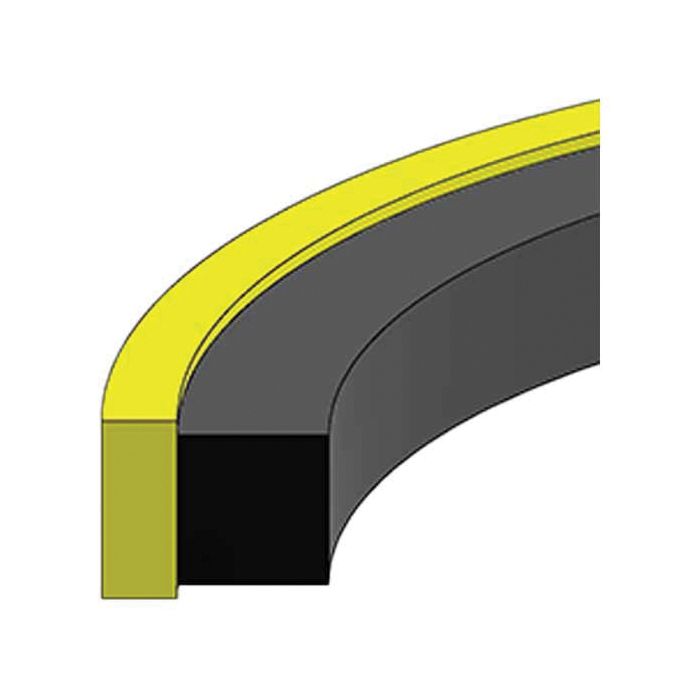

Designed for hydraulic cylinder applications requiring low friction and reliable sealing performance, the Style 1800 Glass-Filled PTFE Piston Seal offers a 3.50 inch bore diameter with a 2.94 inch groove diameter and a seal height of 0.269 inches. The seal is constructed from 15% glass-filled PTFE with a rubber energizer, providing chemical resistance and stable performance across a wide range of service conditions.

Rated for pressures from 0 to 5,000 PSI and temperatures between -40°F and 220°F, this seal suits demanding hydraulic environments where temperature cycling and fluid compatibility are key considerations. Piston diameter dimensions are provided for pistons without wear rings. Manufactured by Hercules Sealing Products and cataloged under number C1DH80.

SKU: PS1800-56

Supplier Part Number (MPN): PS1800-56

Alternate Part Numbers: C1DH80

Specifications

Bore 3.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) +0.006 / -0	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 2.94	Groove Width Tolerance (in) ±0.002	Piston Dia. F 3.50	Piston Dia. Tolerance (in) +0/-0.006	Seal Cross Section C 0.09	Seal Height B 0.27	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1800-56	Alternate Part Numbers Alternate Part Number C1DH80	Product Weight 0.05 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Piston Dia. Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Groove Width Tolerance (in)
PS1800-20 Style 1800 PTFE Piston Seal	1.25	0.116	0.067	0.94	1.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-24 Style 1800 PTFE Piston Seal	1.5	0.116	0.067	1.19	1.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-32 Style 1800 PTFE Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-36 Style 1800 PTFE Piston Seal	2.25	0.116	0.067	1.94	2.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-40 Style 1800 PTFE Piston Seal	2.5	0.116	0.067	2.19	2.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-48 Style 1800 PTFE Piston Seal	3	0.269	0.087	2.44	2.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-56 Style 1800 PTFE Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-64 Style 1800 PTFE Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-68 Style 1800 PTFE Piston Seal	4.25	0.269	0.087	3.69	4.249	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-72 Style 1800 PTFE Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-80 Style 1800 PTFE Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-88 Style 1800 PTFE Piston Seal	5.5	0.362	0.142	4.738	5.499	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002
PS1800-96 Style 1800 PTFE Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002

Product Questions & Answers (1)

Question by: Melvin R on Mar 15, 2026, 12:34 PM

got a 3.50 bore cylinder, is this seal the right size or am i gonna be fighting it?

Answer by: Customer Support on Mar 16, 2026, 6:35 PM

For sizing, it is built around a 3.50 inch bore with a bore tolerance of plus or minus 0.002 inch. The listed piston diameter (F) is 3.499 inch with a piston diameter tolerance of +0 / -0.006, and the groove diameter is 2.94 inch. Those numbers are the ones you want to match up for a proper fit.
