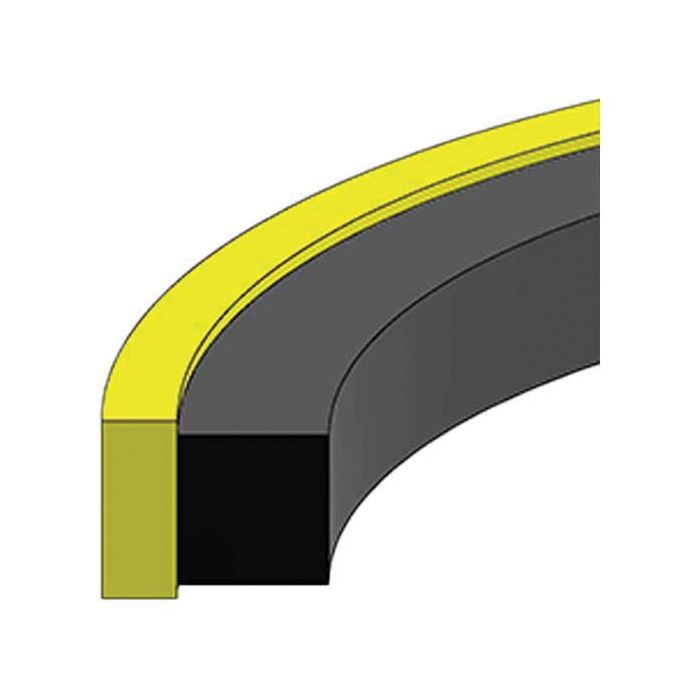

Style 1800 Glass-Filled PTFE Piston Seal, 5.50 Inch Bore Diameter, 4.74 Inch Groove Diameter, Inch Groove Width

Description & Features

The Style 1800 Glass-Filled PTFE Piston Seal is engineered for robust performance in hydraulic applications. Designed to fit a 5.50-inch bore with precision, this seal features a groove diameter of 4.738 inches and a cross section of 0.142 inches. Its construction includes a 15% glass-filled PTFE material, providing excellent chemical resistance and durability, complemented by a rubber energizer to ensure effective sealing under varying conditions.

With a pressure range capability from 0 to 5,000 PSI and a temperature tolerance between -40°F to 220°F, this piston seal is suitable for demanding environments. The precise bore and piston diameter tolerances ensure optimal fit, reducing wear and extending service life. Rely on Hercules Sealing Products' reputation for quality in hydraulic sealing solutions for reliable performance.

SKU: PS1800-88

Supplier Part Number (MPN): PS1800-88

Alternate Part Numbers: C1DH86, MI-01037259, MINO-00407X30144

Specifications

Bore 5.50	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 4.74	Groove Width Tolerance (in) ±0.002	Piston Dia. F 5.50	Piston Dia. Tolerance (in) +0/-0.007	Seal Cross Section C 0.14	Seal Height B 0.36	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1800-88	Alternate Part Numbers Alternate Part Number C1DH86, Alternate Part Number MI-01037259, Alternate Part Number MINO-00407X30144	Product Weight 0.13 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Piston Dia. Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Groove Width Tolerance (in)
PS1800-20 Style 1800 PTFE Piston Seal	1.25	0.116	0.067	0.94	1.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-24 Style 1800 PTFE Piston Seal	1.5	0.116	0.067	1.19	1.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-32 Style 1800 PTFE Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-36 Style 1800 PTFE Piston Seal	2.25	0.116	0.067	1.94	2.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-40 Style 1800 PTFE Piston Seal	2.5	0.116	0.067	2.19	2.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-48 Style 1800 PTFE Piston Seal	3	0.269	0.087	2.44	2.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-56 Style 1800 PTFE Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-64 Style 1800 PTFE Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-68 Style 1800 PTFE Piston Seal	4.25	0.269	0.087	3.69	4.249	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-72 Style 1800 PTFE Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-80 Style 1800 PTFE Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-88 Style 1800 PTFE Piston Seal	5.5	0.362	0.142	4.738	5.499	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002
PS1800-96 Style 1800 PTFE Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002

Product Questions & Answers (1)

Question by: Keith S on May 17, 2025, 3:21 PM

got a 5.50 bore cylinder, is this seal the right size or am i gonna fight it

Answer by: Customer Support on May 19, 2025, 12:19 PM

It matches a 5.50 inch bore with a bore tolerance of ±0.002 inch. The groove diameter is 4.738 inches, and the seal cross section is 0.142 inch with a ±0.005 tolerance. It also lists a piston diameter F of 5.499 inch with a +0/-0.007 tolerance, which is the dimension given for pistons without wear rings.
