Style 1800 Glass-Filled PTFE Piston Seal, 6.00 Inch Bore Diameter, 5.24 Inch Groove Diameter, Inch Groove Width

Description & Features

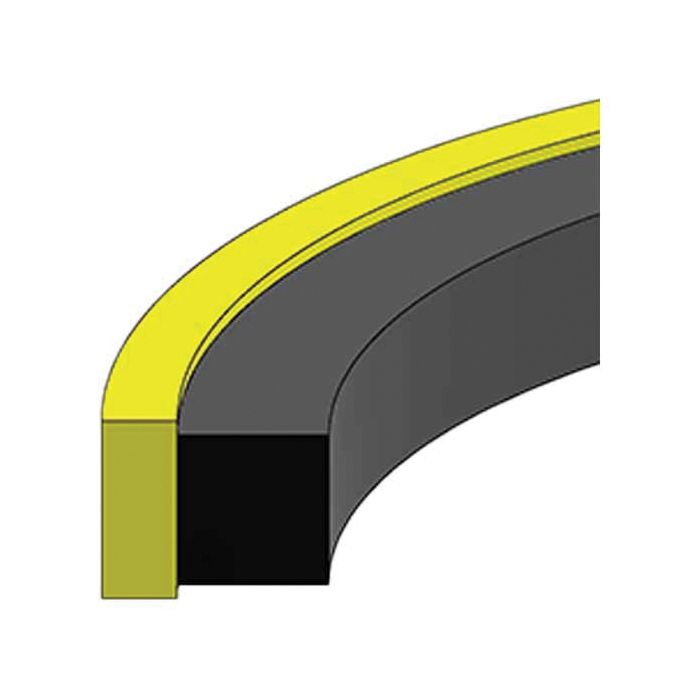

Designed for hydraulic cylinder applications requiring low-friction, chemically resistant sealing, the Style 1800 Glass-Filled PTFE Piston Seal is manufactured by Hercules Sealing Products and sized for a 6.00 inch bore diameter with a 5.24 inch groove diameter. The seal is constructed from 15% glass-filled PTFE with a rubber energizer, combining dimensional stability with consistent radial load against the bore wall.

Rated for pressures from 0 to 5,000 PSI and a temperature range of -40°F to 220°F, this seal suits a broad range of hydraulic cylinder service conditions. The piston diameter of 5.999 inches is specified for pistons without wear rings. Close tolerances on bore, groove width, and cross section support reliable fit and predictable sealing performance across the rated operating range.

SKU: PS1800-96

Supplier Part Number (MPN): PS1800-96

Alternate Part Numbers: C1DH87

Specifications

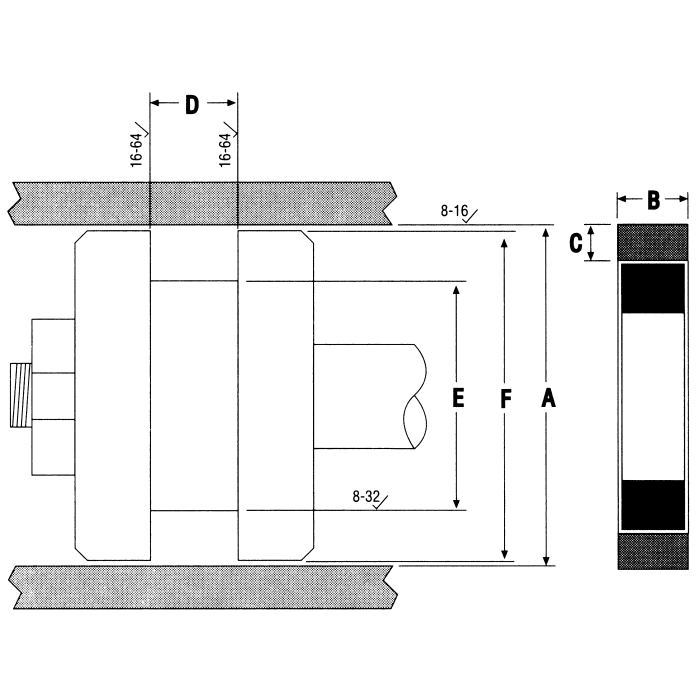

Bore 6	Bore Tolerance (in) ±0.002	Cross Section Tolerance (in) ±0.005	Brand Hercules Sealing Products	Brand Hercules Sealing Products	Pack Size 1.00	UOM EA	Groove Dia. E 5.24	Groove Width Tolerance (in) ±0.002	Piston Dia. F 6.00	Piston Dia. Tolerance (in) +0/-0.007	Seal Cross Section C 0.14	Seal Height B 0.36	Seal Height Tolerance (in) +0.005 / -0	Supplier Part Number PS1800-96	Alternate Part Numbers Alternate Part Number C1DH87	Product Weight 0.08 lbs

Similar Products

Model Number	Bore	Seal Height B	Seal Cross Section C	Groove Dia. E	Piston Dia. F	Bore Tolerance (in)	Piston Dia. Tolerance (in)	Cross Section Tolerance (in)	Seal Height Tolerance (in)	Groove Width Tolerance (in)
PS1800-20 Style 1800 PTFE Piston Seal	1.25	0.116	0.067	0.94	1.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-24 Style 1800 PTFE Piston Seal	1.5	0.116	0.067	1.19	1.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-32 Style 1800 PTFE Piston Seal	2	0.116	0.067	1.69	1.999	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-36 Style 1800 PTFE Piston Seal	2.25	0.116	0.067	1.94	2.249	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-40 Style 1800 PTFE Piston Seal	2.5	0.116	0.067	2.19	2.499	±0.002	+0/-0.005	+0.006 / -0	+0.005 / -0	±0.002
PS1800-48 Style 1800 PTFE Piston Seal	3	0.269	0.087	2.44	2.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-56 Style 1800 PTFE Piston Seal	3.5	0.269	0.087	2.94	3.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-64 Style 1800 PTFE Piston Seal	4	0.269	0.087	3.44	3.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-68 Style 1800 PTFE Piston Seal	4.25	0.269	0.087	3.69	4.249	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-72 Style 1800 PTFE Piston Seal	4.5	0.269	0.087	3.94	4.499	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-80 Style 1800 PTFE Piston Seal	5	0.269	0.087	4.44	4.999	±0.002	+0/-0.006	+0.006 / -0	+0.005 / -0	±0.002
PS1800-88 Style 1800 PTFE Piston Seal	5.5	0.362	0.142	4.738	5.499	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002
PS1800-96 Style 1800 PTFE Piston Seal	6	0.362	0.142	5.238	5.999	±0.002	+0/-0.007	±0.005	+0.005 / -0	±0.002
