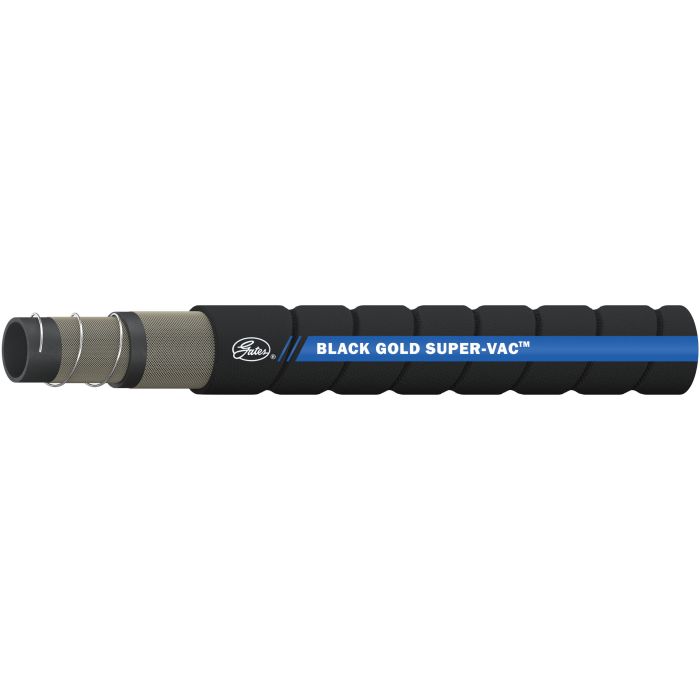

Super-Vac Petroleum Transfer Tank Truck Service Hose, Black With Blue Stripe, 1.25 Inch ID, Up To 150.00 PSI

Ask A Question

Description & Features

Designed for demanding tank truck service this robust hose offers top-notch performance. Constructed with a specially compounded black elastomer tube it ensures durability under rigorous conditions.

This reliable hose features synthetic high tensile reinforcement with a wire helix providing strength and flexibility. The black SBR cover with a blue spiral stripe enhances its resilience and resistance to abrasion.

With a 1.25-inch internal diameter and a maximum operating pressure of 150 PSI it accommodates diverse petroleum transfer operations. The minimum bend radius of 3 inches allows for flexible routing while the temperature range of -40F to 150F caters to various environmental conditions.

The hose includes malleable iron Pin Lug Shank Type fittings or steel Combination Nipple Shank Type fittings ensuring a secure and efficient connection. It also supports full vacuum service up to 30 inches Hg making it versatile for different industrial uses.

Supplier Part Number: 46880653

Specifications

Brand
Gates®
Color
Black
Cover Material
Styrene-Butadiene
grp Caution
Not Recommended for Refined Products Such as Gasoline
grp Construction
Specially Compounded Black Elastomer Tube, Synthetic, High Tensile Reinforcement with Wire Helix, Black SBR (Styrene Butadiene) Cover with Blue Spiral Stripe
Hose Color
Black
Hose Type
Bulk Petroleum Transfer Hose
Inside Diameter
1-1/4 in
Reinforcement
Synthetic, High-Tensile Textile with Steel Wire Helix
Resistance Properties
Oil
Tube Material
Nitrile

Similar Products

Model Number Hose I.D. Hose O.D. Maximum Operating Pressure Minimum Bend Radius Vacuum Service Package Qty. Price Action
Super-Vac Petroleum Transfer Tank Truck Service Hose, Black With Blue Stripe, 1.00 Inch ID, Up To 150.00 PSI

4688-0651 Super-Vac Petroleum Transfer Hose

1

1.38

150

3

30

100

Product Questions & Answers (2)

Question by: Wayne M on Jul 4, 2025, 1:06 PM
hose is rated for diesel right? got a tank truck that runs fuel oil deliveries pretty much all day and need something that can handle full suction pulls without failing on me
Answer by: Customer Support on Jul 6, 2025, 6:17 AM
Petroleum-based fuel oil falls within the range this hose is built for. It handles full vacuum service up to 30 inches Hg, so suction pulls are well within its capability. The working pressure tops out at 150 PSI and the temperature range runs from -40F up to 150F, though diesel is noted as normally conveyed below 120F. Just keep in mind this hose is not recommended for refined products like gasoline, so as long as you're staying on the fuel oil and diesel side of things, you're in good shape.
Question by: Tammy M on Feb 14, 2026, 5:24 PM
What kind of stuff can this hose handle? I'm mainly movin' around diesel.
Answer by: Customer Support on Feb 16, 2026, 6:51 AM
It's good for tank truck service, and can handle diesel fuel just fine, so long as the fuel temperature stays below 120°F.
