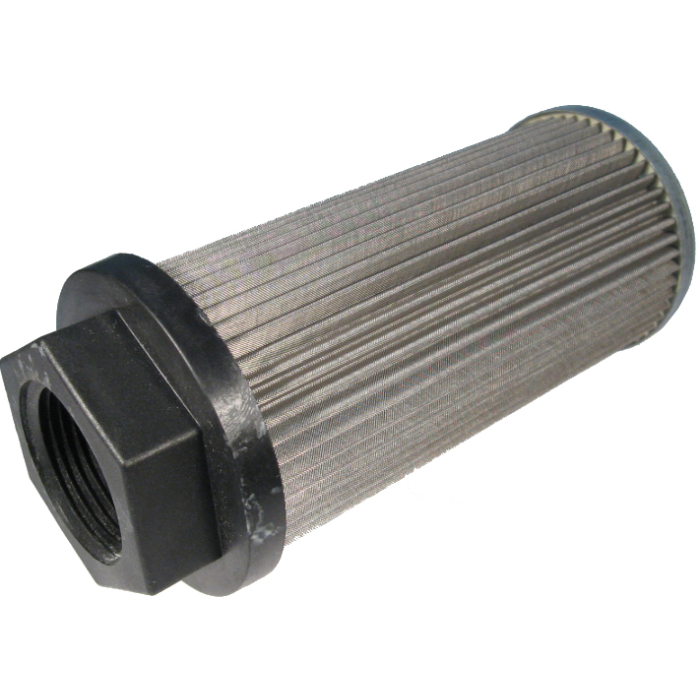

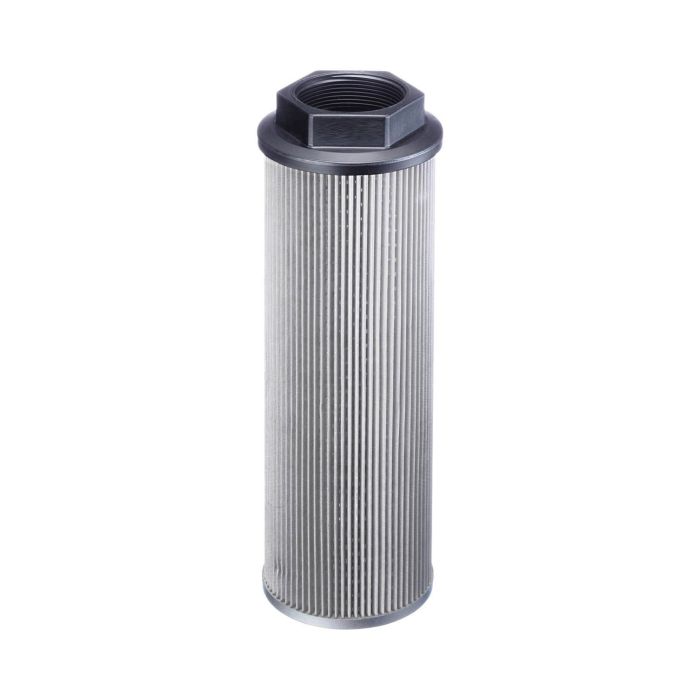

SUS Series Suction Strainer, 1-1/4 NPT Port, 120.0 Mesh, Up To 16.90 GPM

Description & Features

The STAUFF SUS Series Suction Strainer is designed for robust performance with 1-1/4 NPT port size and a 120.0 mesh. This strainer is capable of handling up to 16.90 GPM making it ideal for protecting hydraulic pumps from larger solid contaminants. The glass fiber reinforced polyamide head ensures long-lasting durability.

With a diameter of 3.40 inches and a length of 5.50 inches this strainer is perfect for submerged applications. It features a cleanable pleated stainless steel wire screen epoxy-bonded to the head which is standard at 100 mesh (150 microns).

This suction strainer is typically mounted horizontally ensuring that the top of the strainer remains at least 3 inches below the lowest oil level to prevent cavitation. Suitable for various industrial applications itrsquo;s built to be reliable and efficient.

MPN: C1ZS73

Supplier Part Number: 1910001909

Specifications

Alternate Part Numbers Alternate Part Number C1MX73, Alternate Part Number C1ZS73, Alternate Part Number SUS-088-N20-140-125-P-O, Alternate Part Number SUS-P-088-N20F-140-125-0, Alternate Part Number SUS088N20140125PO, Alternate Part Number SUSP088N20F1401250, Alternate Part Number TFS-120-0-P, Alternate Part Number TFS-120-O-P, Alternate Part Number TS111W1	Diameter (in) 3.40	Brand Stauff Corporation	Brand Stauff Corporation	Pack Size 1.00	UOM EA	Features Glass Fiber Reinforced Polyamide Head	Length 5.50	Mesh Size 120	Rated Flow 16.90	Rated Flow 16.9	Screen Area 162	Size 1-1/4 NPT	Supplier Part Number 1910001909	Product Weight 0.71 lbs

Similar Products

Model Number	Size	Rated Flow	Mesh Size	Screen Area	Diameter (in)	Length	Features
1910001908 SUS Series Suction Strainer	1 NPT	13	120	144	2.68	5.51	Glass Fiber Reinforced Polyamide Head
1910001915 SUS Series Suction Strainer	2 NPT	59.8	120	504	4.02	10.24	Glass Fiber Reinforced Polyamide Head
221084 SUS Series Suction Strainer	2-1/2 NPT	75	100	400	5.17	10.10	Nylon Head
1910001910 SUS Series Suction Strainer	1-1/2 NPT	36.4	120	182	3.46	5.51	Glass Fiber Reinforced Polyamide Head
SUSP131N48F27212 SUS Series Suction Strainer	3 NPT	104	100	500	5.90	10.70	Glass Fiber Reinforced Polyamide Head

Product Questions & Answers (2)

Question by: Patty A on Mar 29, 2025, 12:13 PM

Hey, will this strainer keep my hydraulic pump from suckin' up too much junk?

Answer by: Customer Support on Mar 30, 2025, 7:13 PM

This strainer is designed to protect hydraulic pumps from larger solid contaminants in submerged applications.

Question by: Cheryl L on Jun 8, 2025, 6:56 AM

strainer says up to 16.9 GPM, is that a hard cutoff or just a recommended max?

Answer by: Customer Support on Jun 10, 2025, 8:26 AM

Rated flow on suction strainers like this one is the recommended operating ceiling, not a point where it immediately fails. Running consistently at or near that limit puts more demand on the screen and can starve the pump if the element starts loading up with debris. For a hydraulic pump pulling right around that range, this strainer fits fine. If your system regularly peaks above 16.9 GPM, stepping up to a higher-rated unit would be the smarter call.
