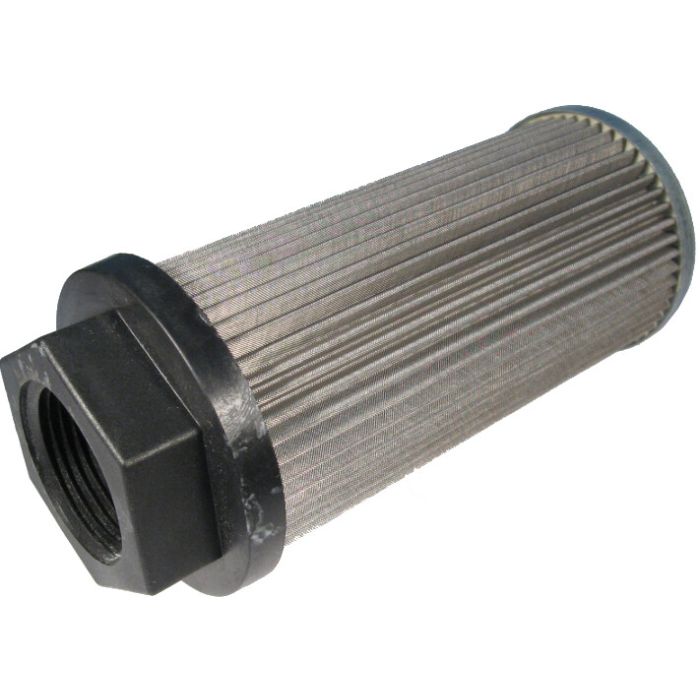

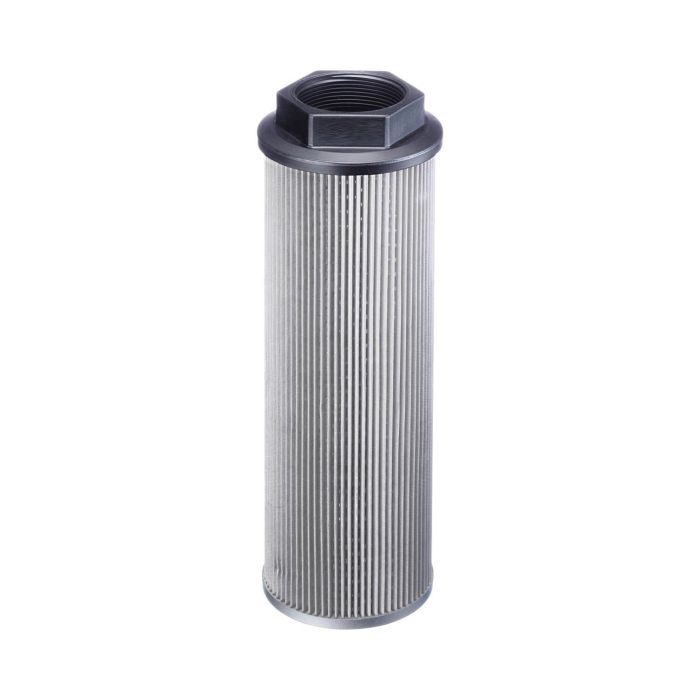

Designed for hydraulic systems the SUS Series Suction Strainer ensures efficient contaminant filtration. Its glass fiber reinforced polyamide head provides durability. This strainer features a 3 NPT port and a 100 mesh (150-micron) stainless steel wire screen delivering effective contaminant trapping.
The SUS Series Suction Strainer 3 NPT Port 100.0 Mesh Up To 104.00 GPM accommodates various industrial applications with its 10.70-inch length and 5.90-inch diameter. It supports a rated flow of up to 104.00 GPM optimizing space utilization and performance.
Installation requires submerging the unit in a reservoir mounting it horizontally to prevent cavitation by keeping the top at least 3 inches below the lowest oil level. The epoxy-bonded screen is cleanable and reusable ensuring minimal downtime and maintenance efficiency.
This robust filtration solution excels in protecting hydraulic pumps from larger solid contaminants in demanding environments.
MPN: 1910001582
Supplier Part Number: 1910001582
Loading related products…
Specifications
Alternate Part Numbers
Alternate Part NumberC1ZS69, Alternate Part Number SUS-131-N48-272-125-P-O, Alternate Part Number SUS-P-131-N-48F-272-125-0, Alternate Part Number TFS-300-0-P
Diameter (in)
5.90
Brand
Stauff Corporation
Brand
Stauff Corporation
Pack Size
1.00
UOM
EA
Features
Glass Fiber Reinforced Polyamide Head
Length
10.70
Mesh Size
100
Rated Flow
104
Rated Flow
104
Screen Area
500
Size
3 NPT
Supplier Part Number
1910001582
Product Weight
1.75 lbs
Similar Products
Model Number
Size
Rated Flow
Mesh Size
Screen Area
Diameter (in)
Length
Features
Price
Action
1910001908SUS Series Suction Strainer
1 NPT
13
120
144
2.68
5.51
Glass Fiber Reinforced Polyamide Head
1910001909SUS Series Suction Strainer
1-1/4 NPT
16.9
120
162
3.40
5.50
Glass Fiber Reinforced Polyamide Head
1910001915SUS Series Suction Strainer
2 NPT
59.8
120
504
4.02
10.24
Glass Fiber Reinforced Polyamide Head
221084SUS Series Suction Strainer
2-1/2 NPT
75
100
400
5.17
10.10
Nylon Head
1910001910SUS Series Suction Strainer
1-1/2 NPT
36.4
120
182
3.46
5.51
Glass Fiber Reinforced Polyamide Head
Product Questions & Answers (3)
Question by: Roger P on May 25, 2025, 9:15 PM
Got a 3-inch suction line on my reservoir setup, will this strainer fit up to it without needing any adapter fittings?
Answer by: Customer Support on May 27, 2025, 10:47 AM
The port on this unit is a 3 NPT, so it connects directly to a 3-inch NPT suction line with no adapter needed. Rated for up to 104 GPM, so as long as your flow demand falls under that, you're in good shape on the performance side too.
Question by: Eddie K on Aug 17, 2025, 7:30 AM
got a 3 inch suction line on a tank, is this the one with 3 NPT threads and what size is the screen
Answer by: Customer Support on Aug 18, 2025, 4:41 PM
For a 3 NPT connection, this model matches that port size. Filtration is a 100 mesh pleated stainless steel wire screen, listed as 150 micron.
Question by: Janice D on Mar 17, 2026, 4:23 PM
How deep does this thing need to be submerged in the hydraulic fluid?
Answer by: Customer Support on Mar 19, 2026, 10:04 AM
Mounting these suction strainers requires that the top of the unit remains at least 3 inches below the lowest oil level to prevent cavitation. For larger sizes, use 1-1/2 pipe diameters instead of 3 inches.
