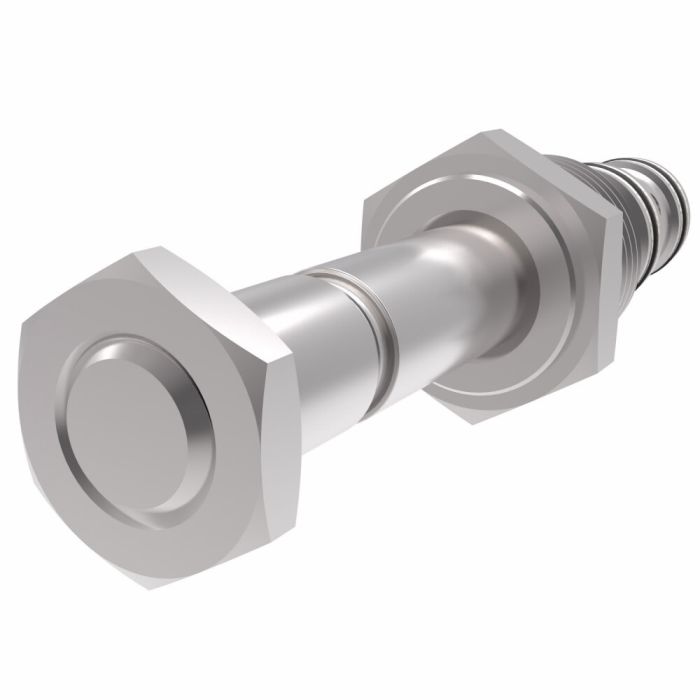

SV1-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

Experience reliable and efficient flow control with the Vickers by Danfoss/Eaton SV1-10-3/3M/3R Series Solenoid Valves. This direct-acting valve is engineered for high-performance applications in harvesters, refuse haulers, and other mobile and industrial settings.

With a pressure rating of 3000 PSI and a flow rating of 6 GPM, it ensures optimal performance under demanding conditions. The valve operates efficiently with ISO 4406 cleanliness level 18/16/13 filtration and features hardened and ground steel components for durability.

This compact solution, suitable for a screw-in cartridge installation, has three ports and supports direct acting control in both energized and de-energized states. It operates within a temperature range of -40deg;F to 248deg;F, making it versatile for various environmental conditions.

Note that the SV1-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve requires a separate J Series 20 Watt coil. Housing and coil are not included.

Model Number: SV1-10-3-0-00

Supplier Part Number: 565546

Specifications

Brand
Vickers by Danfoss
Actuator Type
Direct Acting, Electrical
Body Material
Aluminum
Cavity
C-10-3
Check Valve
Without Check Valve
Dimensions
4 in L x 1 in W x 1 in H
Diode
Without Diode
Function
Solenoid Valve
grp Internal Leakage
10 cu-in/min Maximum at 3000 psi
grp Operation
In the De-Energized Position, this Valve Allows Flow From Port 2 to Port 1 While Port 3 is Blocked. In the Energized Position, Flow is Allowed From Port 1 to Port 3 While Port 2 is Blocked
Housing
Without Housing
Installation Type
Screw-In
Leakage
Standard
Manual Override Option
Without Manual Override
Number of Ports/Ways
3-Port, 3-Way
Number of Positions
2
Port Type
Cartridge
Seal Material
Buna-N
Series
SV1-10-3/3M/3R Series
Switch Connector
Without Switch Connector

Product Questions & Answers (4)

Question by: Wes S on Mar 7, 2026, 1:40 PM
Will this fit in a standard C-10-3 cavity?
Answer by: Customer Support on Mar 9, 2026, 7:17 AM
This solenoid cartridge valve requires a C-10-3 cavity. Housings are sold separately.
Question by: Duane H on Feb 15, 2026, 9:41 AM
got a 3-way circuit and need to know how it shifts. when it aint powered up, which ports are open on this SV1-10-3?
Answer by: Customer Support on Feb 16, 2026, 11:39 AM
With the coil de-energized, flow goes from port 2 to port 1 and port 3 is blocked. When you energize the solenoid, it switches so flow goes from port 1 to port 3 and port 2 is blocked.
Question by: Neal R on Apr 25, 2025, 6:23 PM
Bought the cartridge but realized after the fact the coil ain't included. What series coil am I gonna need to get this thing workin?
Answer by: Customer Support on Apr 27, 2025, 6:25 AM
You'll want a J Series 20 Watt coil, sold separately. The cartridge itself is just the valve body, so the coil has to be ordered on its own. If your setup uses a DIN 43650 connector, you'll also need the matching solenoid connector since that's required on models using that connector style. Make sure you're sourcing the right coil for your voltage requirements before you put the order in.
Question by: Howard K on Jun 24, 2025, 6:18 PM
Will this here valve work on a refuse truck?
Answer by: Customer Support on Jun 26, 2025, 6:04 PM
Designed for mobile and industrial applications like harvesters and refuse haulers, this valve should be suitable for your truck.
