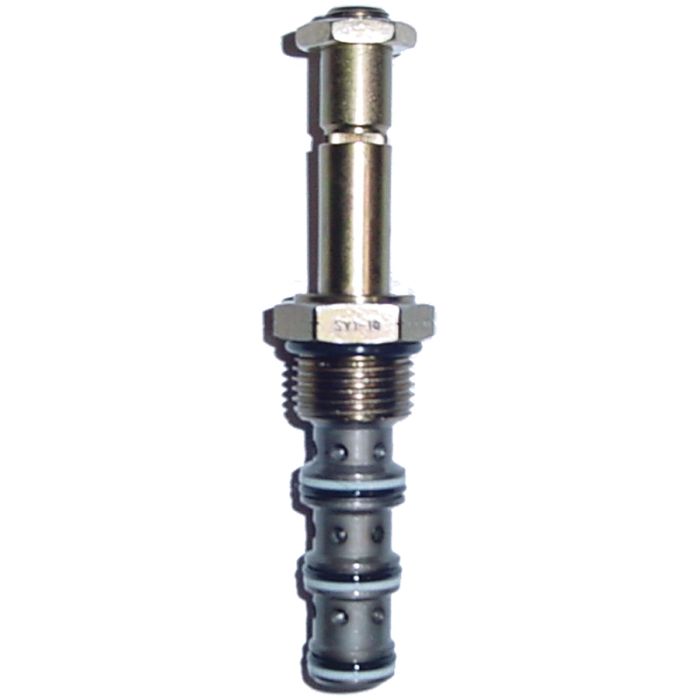

SV1-10-4 Series 4-Way, 2-Position Solenoid Cartridge Valves, Up To 6 GPM & 3000 PSI

Description & Features

Cartridge	Model SV1-10-4*, sold separately.
Coil	J Series 20 Watt, sold separately, see
Group Description	The SV1-10-4 is a 4-way, 2-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	6 GPM.
Housing	Cavity size C-10-4, sold separately, see
Internal Leakage	10 in³ per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position, this valve allows flow from port 2 to port 3 and from port 4 to port 1. In the energized position, flow is allowed from port 3 to port 4 and from port 2 to port 1.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Model Number	Part Number	Manual Override Option	Housing	Coil	Seal Material	Price	Action
SV1-10-4-0-00 SV1-10-4 Series Cartridge Valve	565547		None	Not Included	Buna-N
