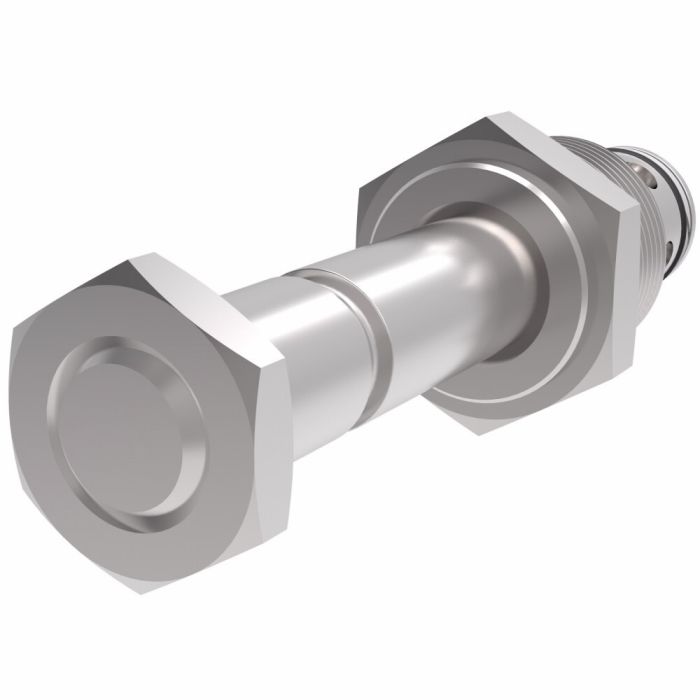

SV1-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

The SV1-10-C Series 2-Way 2-Position Normally Closed Solenoid Cartridge Valve is meticulously designed for demanding mobile and industrial applications such as harvesters and refuse haulers. This high-performance valve with a robust pressure rating of 3000 PSI is constructed from hardened and ground steel ensuring durability and longevity.

Featuring a direct acting operation style the valve allows free flow from port 1 to port 2 when de-energized while blocking flow from port 2 to port 1. Conversely energizing the valve restricts flow from port 1 to port 2 allowing free flow from port 2 to port 1.

This solenoid valve supports a flow rating of 12 GPM and incorporates a recommended filtration level of ISO 4406 cleanliness level 18/16/13 or cleaner. It is compatible with J Series 20 Watt coils which are sold separately. The temperature range for reliable operation is between -40deg;F to 248deg;F.

With its compact and economical design the valve also guarantees minimal internal leakage capped at 5 drops per minute at 3000 PSI. Note that the housing and coil are not included and are available separately.

Model Number: SV1-10-C-0-00

Supplier Part Number: 565534
