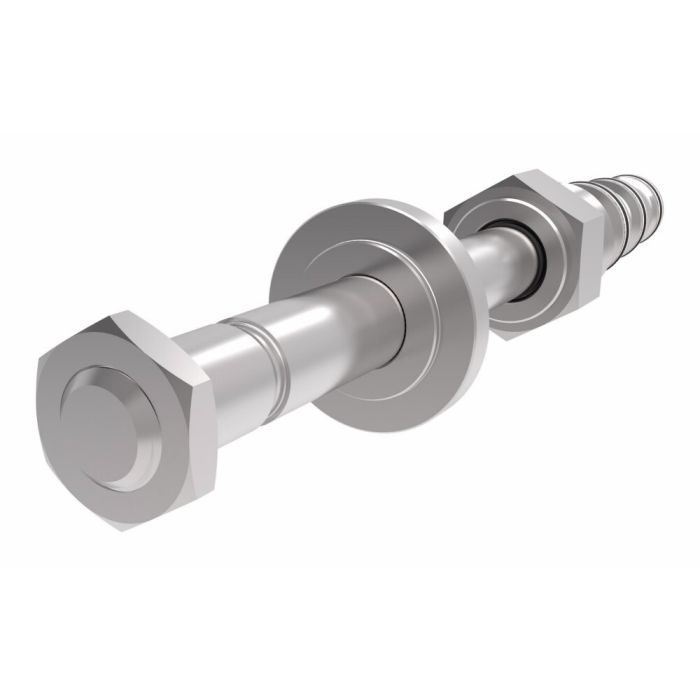

main product photo

SV1-8-3 Series 3-Way, 2-Position, Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SV1-8-3 Series 3-Way, 2-Position, Solenoid Cartridge Valve, housing none and coil not included, is a versatile and essential component for mobile and industrial applications such as harvesters and refuse haulers.

This direct-acting valve operates efficiently with a pressure rating of 3000 PSI across all ports and allows flow control with minimal internal leakage mdash; 5 insup3; per minute maximum at 3000 PSI.

Constructed with hardened and ground steel, this reliable and compact valve also features a recommended filtration level of ISO 4406 Cleanliness Level 18/16/13 or cleaner, ensuring longevity and performance.

With a flow rating of 3 GPM and suitable for cavity size C-8-3 (housing sold separately), the SV1-8-3 valve meets rigorous industry standards.

Operating within a temperature range from -40deg;F to 248deg;F, the valve's Buna-N seals and screw-in cartridge design make it suitable for harsh environments.

In its de-energized position, the valve allows flow from port 2 to port 1 while port 3 is blocked. Conversely, in the energized position, flow is permitted from port 1 to port 3 while port 2 is blocked.

MPN: SV1-8-3-0-00

Supplier Part Number: 02-160771

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
8 series, 20 W
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
3-Way 2-Position
Supplier Part Number
02-160771
Switch Connector
No
Valve Material
Cartridge only
Voltage
volt
Product Weight
0.24 lbs
Alternate Part Numbers
Alternate Part Number C1HL36, Alternate Part Number N2BVS018, Alternate Part Number SV183000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV1-8-3 Series 3-Way, 2-Position, Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV1-8-3-0-00 SV1-8-3 Series Cartridge Valve

02-160771

None

Not Included

Buna-N

Product Questions & Answers (1)

Question by: Randy C on Sep 1, 2025, 9:04 AM
What's actually happening inside this valve when it ain't energized, like which ports are open and which ones are blocked?
Answer by: Customer Support on Sep 2, 2025, 1:26 PM
When the solenoid is de-energized, flow moves from port 2 to port 1, and port 3 stays blocked. Flip it to energized and the situation reverses, port 1 flows to port 3, and port 2 gets blocked. That makes it well suited for setups like single acting cylinders where you need separate pressure and tank lines routed through the same valve body.
