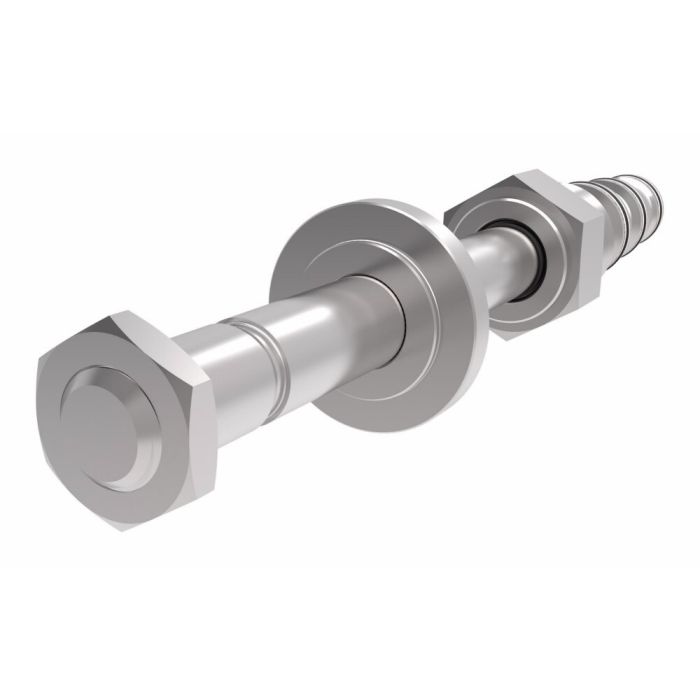

SV13-12-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

Designed for mobile and industrial hydraulic circuits, the SV13-12-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve from Eaton Vickers is a pilot-operated, poppet-type screw-in cartridge valve rated to 5,000 PSI with a 30 GPM flow rating. In the de-energized state, it permits bi-directional flow between ports 1 and 2. When energized, flow from port 2 to port 1 is blocked, while flow from port 1 to port 2 is permitted once spring force is overcome.

The cartridge body is constructed from hardened and ground steel with Buna-N seals, and fits a C-12-2 cavity. Internal leakage is less than 5 drops per minute at maximum pressure. Recommended fluid cleanliness is ISO 4406 level 18/16/13 or cleaner, and the valve is rated for temperatures from -40°F to 212°F. Compatible with the 10-series coil (29 W), sold separately. Suited for harvesters, refuse haulers, and a range of mobile and industrial hydraulic applications.

SKU: 02-175825

Supplier Part Number (MPN): 02-175825

Alternate Part Numbers: C1MG18, SV13120000

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
10 series, 29 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Pilot Operated
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Supplier Part Number
02-175825
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.62 lbs
Alternate Part Numbers
Alternate Part Number C1MG18, Alternate Part Number SV13120000

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SV13-12-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV13-12-0-0-00 SV13-12-O Series Cartridge Valve

02-175825

None

Not Included

Buna-N

Product Questions & Answers (2)

Question by: Duane T on Sep 24, 2025, 9:44 PM
got a valve bank that takes a C-12-2 cavity, is this the right cartridge or am i lookin at the wrong one
Answer by: Customer Support on Sep 26, 2025, 6:59 AM
The SV13-12-O series is a screw-in cartridge that uses cavity size C-12-2, and it does require a machined cavity or housing for installation. Keep in mind this SKU is the cartridge only, with no housing and no coil included.
Question by: Curt W on Oct 5, 2025, 7:25 AM
What coil do I need for this valve?
Answer by: Customer Support on Oct 7, 2025, 8:24 AM
This valve body is designed to work with a 10 series, 29 W coil, sold separately.
