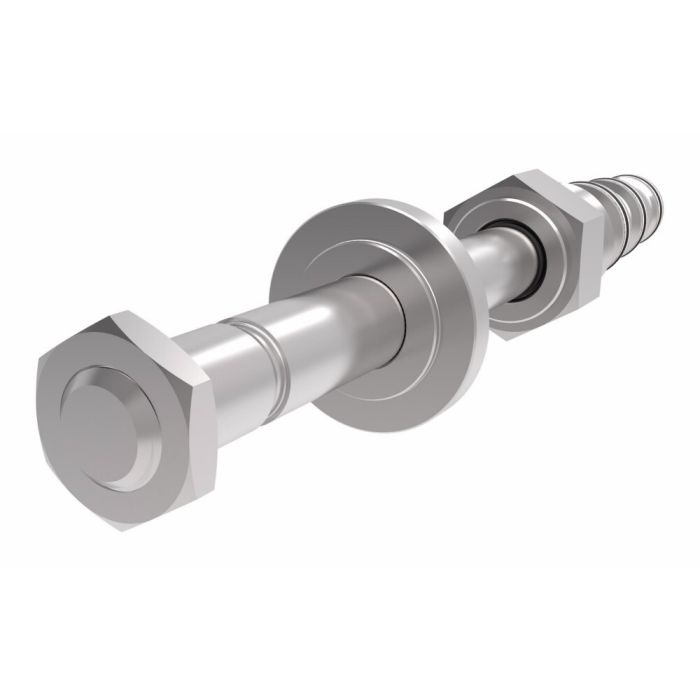

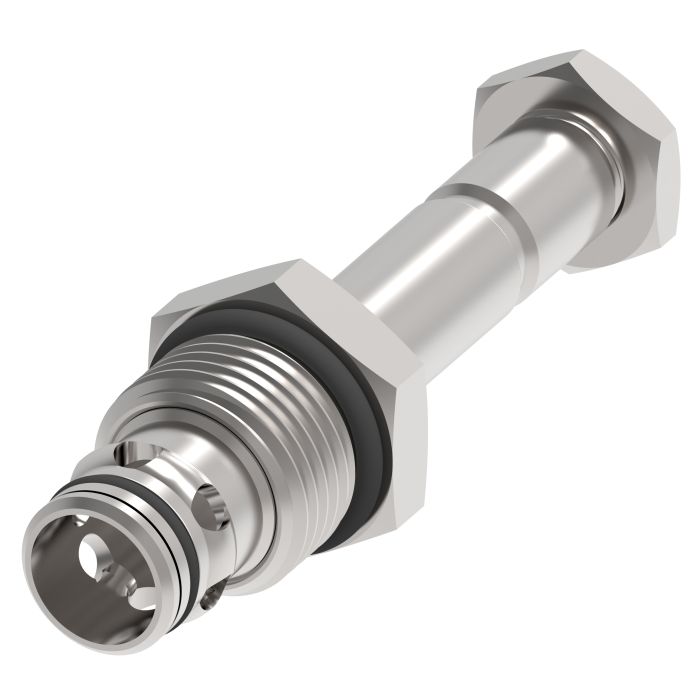

main product photo

SV13-16-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

Designed for demanding industrial and mobile applications, the Eaton Vickers SV13-16-C Series Solenoid Cartridge Valve is a reliable solution for managing fluid flow. This 2-way, 2-position, pilot-operated valve is constructed from hardened and ground steel, ensuring durability and longevity in harsh environments. With a pressure rating of 5000 PSI and a flow capacity of 35 GPM, it is ideal for use in harvesters, refuse haulers, and other heavy-duty equipment.

The valve operates in a normally closed position, allowing free flow from port 1 to port 2 when energized. It is compatible with ISO 4406 Cleanliness Level 18/16/13 or cleaner, and features Buna-N seals for optimal performance.

SKU: 02-175823

Supplier Part Number (MPN): 02-175823

Alternate Part Numbers: C1MG17, SV1316C000

Specifications

Brand
Vickers by Danfoss
Actuator Type
Pilot Operated
Cavity
C-16-2
Check Valve
Without Check Valve
Coil Series
10 Series, 29 W
Configuration
Normally Closed
Dimensions
4.28 in L x 1.53 in W x 1.92 in H
Diode
Without Diode
Domestic/Import
Import
Function
Solenoid Valve
grp Internal Leakage
Less than 5 drops/min maximum at 5000 psi
grp Operation
In the De-Energized Position, Flow is Blocked From Port 2 to Port 1 and Free Flow is Allowed From Port 1 to Port 2. In the Energized Position, the Poppet Lifts to Allow Flow in Either Direction
Installation Type
Screw-In
Leakage
Standard
Number of Ports/Ways
2-Port, 2-Way
Number of Positions
2
Port Type
Cartridge
Seal Material
Buna-N
Segment Code
A
Series
SV13-16-C/CM Series
Switch Connector
Without Switch Connector

Product Questions & Answers (3)

Question by: Tammy G on Jul 24, 2025, 4:51 PM
runs at 5000 psi all day long on our refuse trucks, but what's the actual flow this thing can handle before it starts causing problems?
Answer by: Customer Support on Jul 26, 2025, 4:43 PM
Rated flow tops out at 35 GPM, and the pressure ceiling is 5000 PSI. Those numbers hold for both mobile and industrial setups, so refuse hauler duty is well within range. Keep in mind this is the cartridge only, no coil or housing included, so you'll need to source those separately before it's ready to run.
Question by: Stan J on Feb 20, 2026, 11:56 AM
got a spot for a C-16-2 cavity already. does this SV13-16-C just screw in there, or am I missing a housing?
Answer by: Customer Support on Feb 22, 2026, 6:49 AM
For installation, it uses a C-16-2 machined cavity and it’s a screw-in cartridge style valve. The “Housing: None” note means you are only getting the cartridge, so you still need a proper cavity or housing block that’s machined for C-16-2.
Question by: Cheryl K on Nov 7, 2025, 12:07 PM
Reckon this would work on a refuse truck?
Answer by: Customer Support on Nov 9, 2025, 9:05 AM
Application-wise, yes, this Vickers/Eaton SV13-16-C series valve is listed for use on refuse haulers, along with harvesters and other mobile and industrial applications.
