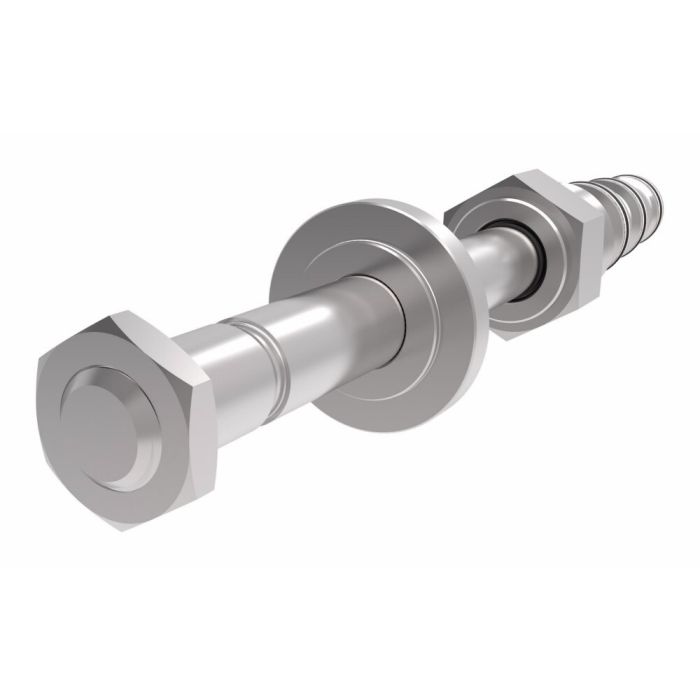

main product photo

SV13-16-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

Ideal for demanding mobile and industrial applications, the Eaton Vickers SV13-16-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve offers exceptional reliability. With a pressure rating of 5000 PSI and a flow rating of 35 GPM, this valve ensures efficient operation under high-pressure conditions. Constructed from hardened and ground steel, it provides robust durability, making it a cost-effective choice for equipment such as harvesters and refuse haulers.

The SV13-16-O features a screw-in cartridge design that requires a machined cavity for installation. Designed to operate efficiently within a temperature range of -40° to 212°F, and with minimal internal leakage of less than 5 drops per minute at maximum pressure, this valve meets stringent performance requirements. It is configured for bi-directional flow in the de-energized state, with flow blocked in the energized state, ensuring versatile functionality across various systems.

SKU: 02-175821

Supplier Part Number (MPN): 02-175821

Alternate Part Numbers: C1MG16, SV13-16-0-0-00

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
10 series, 29 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Open
Supplier Part Number
02-175821
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.89 lbs
Alternate Part Numbers
Alternate Part Number C1MG16, Alternate Part Number SV13-16-0-0-00

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SV13-16-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV13-16-0-0-00 SV13-16-O Series Cartridge Valve

02-175821

None

Not Included

Buna-N

Product Questions & Answers (1)

Question by: Donna S on Sep 4, 2025, 9:28 AM
got a cavity already cut for C-16-2. will this SV13-16-O screw right in, or am i missing some other pieces?
Answer by: Customer Support on Sep 5, 2025, 5:33 PM
The cartridge is a screw-in style that installs into a machined C-16-2 cavity, but this part is the cartridge only. You still need a compatible housing or manifold with that cavity, and the coil is not included with this valve.
