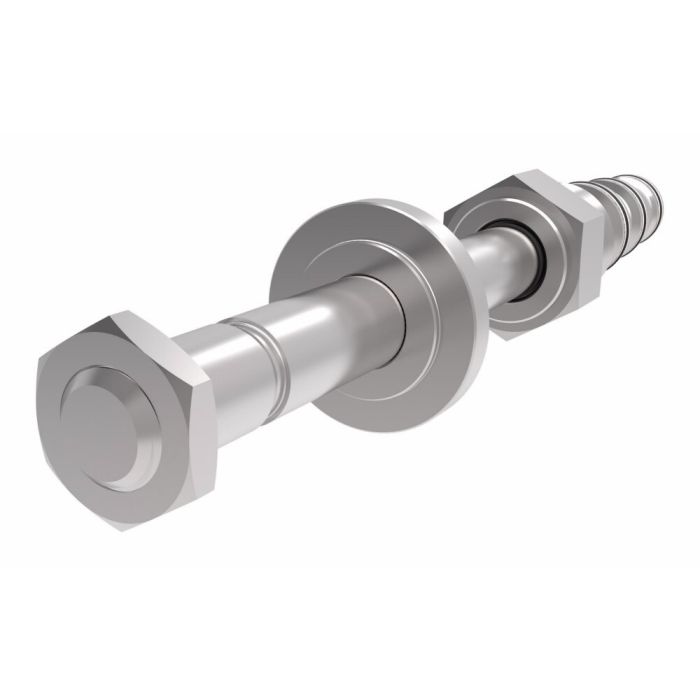

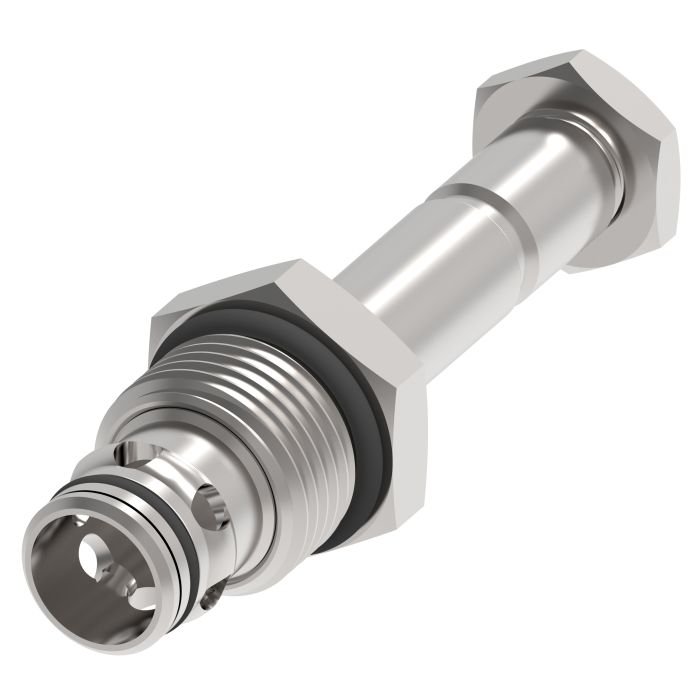

SV13-20-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The Vickers by Danfoss / Eaton SV13-20-C/CM Series Solenoid Valve is engineered for demanding mobile and industrial applications, including harvesters and refuse haulers. Capable of handling high pressures up to 5000 PSI, this direct-acting solenoid cartridge valve offers a flow rating of 60 GPM.

This valve features a 2-Way, 2-Position normally closed configuration, ensuring reliable performance. Its hardened and ground steel construction contributes to its durability, while the Buna-N seal material provides excellent sealing capabilities. The valve allows free flow from port 1 to port 2 and blocks flow from port 2 to port 1 in the de-energized position, while permitting bidirectional flow when energized.

Withstanding temperatures ranging from -40deg; to 212deg;F, this valve supports a recommended filtration level of 18/16/13, adhering to ISO 4406 cleanliness standards. The internal leakage is less than 5 drops per minute at maximum pressure, ensuring minimal leakage.

This valve requires a cavity size C-20-2 housing and operates with a coil, both sold separately. It is essential to use the appropriate solenoid connectors for models utilizing DIN 43650 connectors.

MPN: SV13-20-C-0-00

Supplier Part Number: 02-175819

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
10 series, 29 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Closed
Supplier Part Number
02-175819
Switch Connector
No
Valve Material
Cartridge only
Product Weight
1.40 lbs
Alternate Part Numbers
Alternate Part Number C1MG15, Alternate Part Number SV1320C000

Related Documents

Similar Products

Model Number Part Number Housing Coil Seal Material Price Action
SV13-20-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV13-20-C-0-00 SV13-20-C Series Cartridge Valve

02-175819

None

Not Included

Buna-N

Product Questions & Answers (3)

Question by: Lyle M on Dec 15, 2025, 8:49 AM
Will this here valve work on my wood splitter?
Answer by: Customer Support on Dec 16, 2025, 2:31 PM
This Eaton Vickers solenoid valve is suitable for mobile and industrial applications, including harvesters and refuse haulers. It's built to handle high pressures, so it should work in a wood splitter system if the specs line up.
Question by: Lee C on Sep 5, 2025, 12:02 PM
got a SV13-20-C-0-00 here, but i dont see a coil with it. is that normal or am i missing something
Answer by: Customer Support on Sep 7, 2025, 6:35 AM
Coil and housing are not included with this cartridge valve. It is the screw-in cartridge only, and it needs a C-20-2 cavity housing plus a compatible H series coil (10 series, 29 W) to run.
Question by: Dean G on Jan 3, 2026, 10:12 AM
valve shows up without a coil or housing, is that normal or did something get left out of my order?
Answer by: Customer Support on Jan 4, 2026, 1:22 PM
That's how it ships. The cartridge itself is what you're getting here. The C-20-2 cavity housing and the coil are both sold as separate items. You'll need to order those on their own to put together a complete working assembly. The coil series compatible with this one is the H series, and the coil wattage runs 29 watts on the 10 series side. Worth making sure you've got all three pieces lined up before you go to install it.
