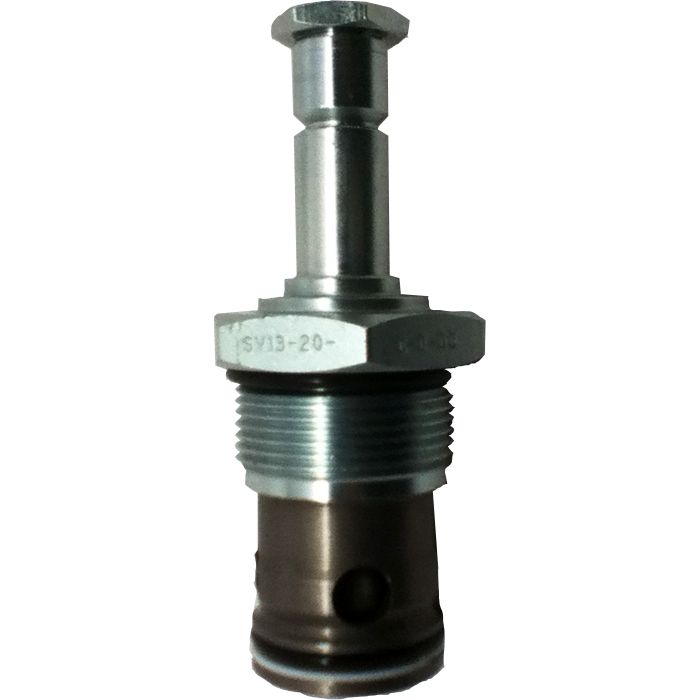

SV13-20-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valves, Up To 60 GPM & 5000 PSI

Description & Features

Cartridge	Model SV13-20-C*, sold separately.
Coil	H series, sold separately, see
Group Description	The SV13-20-C is a 2-way, 2-position, pilot operated, poppet-type, normally closed screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	60 GPM.
Housing	Cavity size C-20-2, sold separately, see
Internal Leakage	Less than 5 drops per minute maximum @ 5000 PSI.
Operation	In the de-energized position, flow is blocked from port 2 to port 1 and free flow is allowed from port 1 to port 2. In the energized position, the poppet lifts to allow flow in either direction.
Pressure Rating	5000 PSI
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40° to 212°F

Model Number	Part Number	Housing	Coil	Seal Material	Price	Action
SV13-20-C-0-00 SV13-20-C Series Cartridge Valve	02-175819	None	Not Included	Buna-N

Question by: Norm C on Nov 20, 2025, 2:24 PM

Will this handle the heat if its mounted near an engine?

Answer by: Customer Support on Nov 22, 2025, 11:22 AM

Its rated temperature range is -40° to 212°F, so as long as it stays within that, you should be good.
