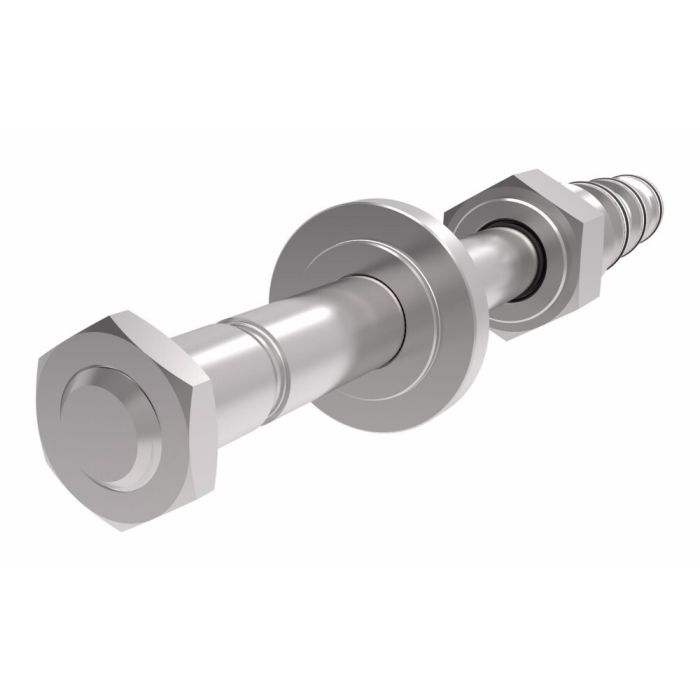

main product photo

SV13-20-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

This Eaton Vickers SV13-20-O Series 2-way, 2-position, normally open solenoid cartridge valve is designed for use in mobile and industrial applications, including harvesters and refuse haulers. This screw-in cartridge valve requires a machined cavity or housing for installation.

This poppet-type, pilot-operated valve offers reliable, economical, and compact performance. It is rated to 5000 PSI and a flow rate of 60 GPM. This model requires a size C-20-2 cavity housing and H Series coil, which are sold separately. It features hardened and ground steel construction and Buna-N seals.

SKU: 02-175817

Supplier Part Number (MPN): 02-175817

Alternate Part Numbers: C1MG14, SV13200000

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
10 series, 29 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Open
Supplier Part Number
02-175817
Switch Connector
No
Valve Material
Cartridge only
Product Weight
1.39 lbs
Alternate Part Numbers
Alternate Part Number C1MG14, Alternate Part Number MINO-00569X52366, Alternate Part Number SV13200000

Related Documents

Product Questions & Answers (2)

Question by: Vince B on Dec 28, 2025, 8:44 PM
Will this valve just drop right into a C-20-2 cavity? Gotta make sure before I order a bunch.
Answer by: Customer Support on Dec 30, 2025, 12:49 PM
Yes, this SV13-20-O cartridge valve is designed for use with a C-20-2 size cavity. Just be sure to torque it to the correct specification for your application.
Question by: Debbie S on Apr 30, 2025, 5:45 PM
does this valve come with the coil and housing, or is that something I gotta track down separate?
Answer by: Customer Support on May 1, 2025, 7:14 PM
The cartridge itself is what you get here. The coil and housing are both sold separately. You'll need a C-20-2 cavity size housing and an H Series coil to get this thing up and running. Worth making sure you have all three pieces sourced before you start the job.
