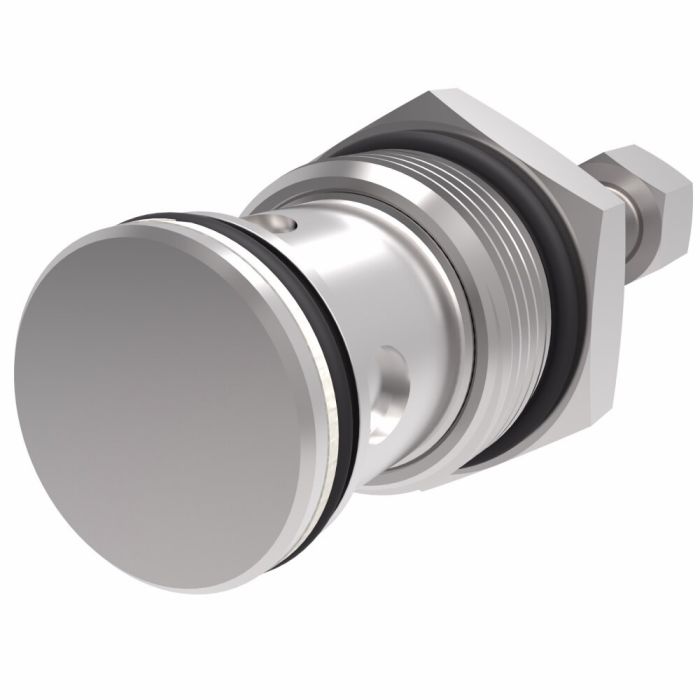

main product photo

SV2-20-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

Vickers by Danfoss / Eaton SV2-20-C Series 2-Way 2-Position Normally Closed Solenoid Cartridge Valves are designed for mobile and industrial applications such as harvesters and refuse haulers. The direct acting solenoid operation ensures precise control with a flow rating of 60 GPM.

This valve with hardened and ground steel components is capable of handling pressures up to 3000 PSI and features a leakage rate of less than 5 drops per minute. The valve material is durable for reliable long-term use and it operates within a temperature range of -40deg;F to 248deg;F. In the de-energized state flow is blocked from port 2 to port 1 allowing free flow from port 1 to port 2 and vice versa when energized.

Installation is straightforward with the screw-in cartridge design which requires a C-20-2 size cavity housing sold separately. The valve is suitable for systems requiring a recommended filtration level of ISO 4406 Cleanliness Level 18/16/13 or cleaner.

Model Number: SV2-20-C-0-00

Supplier Part Number: 565539

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
series, 23 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Closed
Supplier Part Number
565539
Switch Connector
No
Valve Material
Cartridge only
Product Weight
1.16 lbs
Alternate Part Numbers
Alternate Part Number C1FA73, Alternate Part Number MINO-00569H79320, Alternate Part Number SV220C000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV2-20-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV2-20-C-0-00 SV2-20-C Series Cartridge Valve

565539

None

Not Included

Buna-N

Product Questions & Answers (2)

Question by: Jimmy S on Sep 5, 2025, 5:53 PM
So, I need a housing for this valve, right? What size am I looking for?
Answer by: Customer Support on Sep 7, 2025, 6:46 AM
This cartridge requires a C-20-2 size cavity housing. It's sold separately.
Question by: Chad B on Sep 7, 2025, 5:52 PM
what cavity size does this cartridge need? got a manifold already bored out and want to make sure before i order
Answer by: Customer Support on Sep 9, 2025, 6:29 AM
You'll need a C-20-2 size cavity. The housing itself is sold separately and not included with this valve, so make sure your manifold matches that spec before pulling the trigger on an order.
