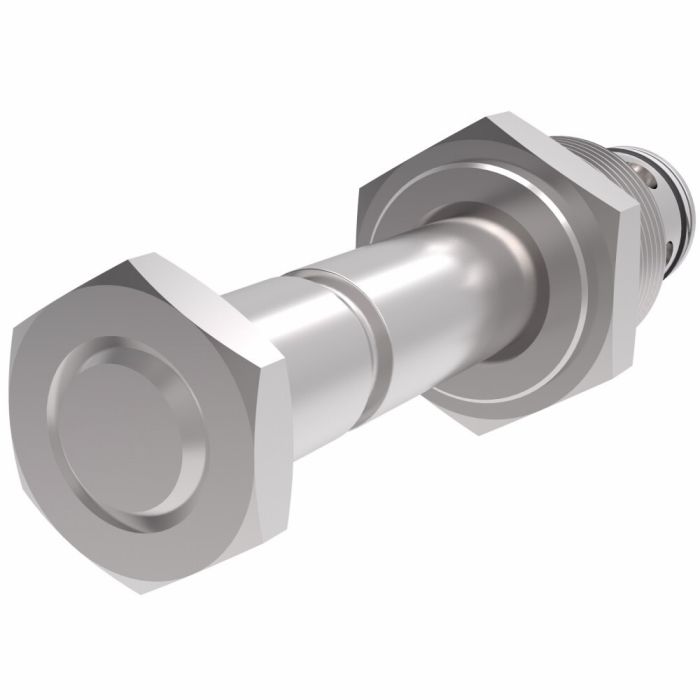

main product photo

SV3-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SV3-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve by Danfoss-Hydraulics is engineered for high-pressure applications up to 350 bar (5000 psi) with a flow rating of 12 GPM and internal leakage of less than 5 drops per minute at 210 bar. This direct acting valve, utilized in mobile and industrial sectors such as harvesters and refuse haulers, optimally blocks flow from port 2 to port 1 when de-energized, and allows bidirectional flow when energized.

Constructed from hardened and ground steel, it features a Buna-N seal, and requires a recommended filtration level of 18/16/13 microns. It operates effectively within a temperature range of -40deg;F to 248deg;F. It fits a cavity size C-10-2 and comes without a housing or coil, both of which must be sourced separately. This cartridge-only model integrates seamlessly into screw-in cartridge systems.

The product supports a reliable, economical, and compact design, making it an excellent choice for hydraulic systems requiring efficient solenoid operation. The solenoid connectors comply with DIN 43650 standards.

MPN: SV3-10-C-0-00

Supplier Part Number: 565536

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
210 bar
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
less than 5 drops/min, max @ 210 bar
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13 microns
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Closed
Supplier Part Number
565536
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.30 lbs
Alternate Part Numbers
Alternate Part Number C1BT21, Alternate Part Number MINO-00569H79323, Alternate Part Number SV3-10-C-0-00, Alternate Part Number SV310C000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV3-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV3-10-C-0-00 SV3-10-C Series Cartridge Valve

565536

None

Not Included

Buna-N

SV3-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: 12VDC

SV3-10-C-0-12DG SV3-10-C Series Cartridge Valve

565657

None

12VDC

Buna-N

Product Questions & Answers (6)

Question by: Freddie J on May 18, 2025, 2:20 PM
What size filtration do you recommend for this valve?
Answer by: Customer Support on May 19, 2025, 8:39 PM
Maintaining a filtration level of ISO 4406 18/16/13 or cleaner will help ensure proper operation and longevity of this valve.
Question by: Jerry B on Sep 21, 2025, 1:19 PM
got a question on how this valve acts when the coil ain’t powered, which way is blocked and which way still flows?
Answer by: Customer Support on Sep 23, 2025, 10:43 AM
In the de-energized state it blocks flow from port 2 to port 1, and it still allows free flow from port 1 to port 2. When you energize it, the poppet lifts and you get flow allowed in either direction.
Question by: Lyle R on Nov 25, 2025, 4:52 PM
what's the flow situation on this valve, is 12 GPM the hard limit or just a rated number?
Answer by: Customer Support on Nov 27, 2025, 9:25 AM
Twelve GPM is the group flow rating for this cartridge. The broader spec sheet shows the valve series is built to handle up to 60 USgpm and 5000 psi at the design level, but the C-10-2 cavity configuration this cartridge fits into is rated for 12 GPM in that group. Running it at the rated flow keeps internal leakage in check, which is listed at less than 5 drops per minute max at 3000 PSI. Staying within that range is where you get reliable, repeatable shutoff behavior.
Question by: Shane C on Sep 22, 2025, 4:11 PM
does this valve come with the coil and housing, or do them need to be sourced separate?
Answer by: Customer Support on Sep 24, 2025, 12:59 PM
The cartridge itself is all you get with this one. No coil, no housing. Both need to be ordered separately. The housing requires a C-10-2 cavity, and the coil is a J Series 20 Watt unit. Worth making sure you have both lined up before you try to get this thing installed.
Question by: Phil P on Apr 27, 2025, 9:48 PM
What size cavity does this valve fit? Just want to make sure it'll work in my setup.
Answer by: Customer Support on Apr 29, 2025, 5:57 PM
This cartridge valve fits a C-10-2 size cavity.
Question by: Janet H on May 26, 2025, 7:26 AM
trying to swap out a bad cartridge, does this SV3-10-C fit the C-10-2 cavity or am i lookin at the wrong one
Answer by: Customer Support on May 27, 2025, 11:29 AM
Fit comes down to the cavity, and this valve is built for cavity size C-10-2. It is a screw-in cartridge valve and it ships as cartridge only, so you will still need a compatible housing and the coil separately.
