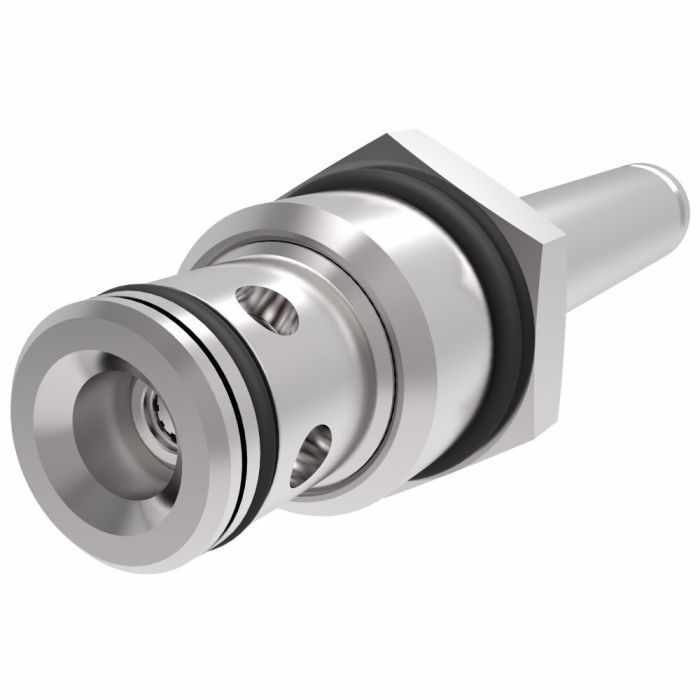

SV3-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SV3-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve is a durable and reliable component designed for harvesters, refuse haulers, and various mobile and industrial applications.

The valve allows bi-directional flow between Port 1 and Port 2 when de-energized and blocks flow from Port 2 to Port 1 while allowing it from Port 1 to Port 2 when energized. Its leakage rate is less than 5 drops per minute under a pressure of 3000 PSI with the valve energized.

Featuring a robust construction with hardened and ground steel, this solenoid valve is built to withstand up to 350 bar (5000 psi) pressure and can handle a flow rating of 12 GPM. The valve showcases a compact and economical design suitable for demanding hydraulic systems.

Recommended filtration level is ISO 4406 Cleanliness Level 18/16/13 or cleaner, ensuring optimal performance and longevity. Operating temperatures range from -40deg;F to 248deg;F, making it versatile for extreme conditions.

Cartridge housing and coil are sold separately. The valve is compatible with J Series 23 Watt coils and fits into a C-10-2 cavity size. The seal material used is Buna-N, providing excellent resistance to various fluids and temperatures.

MPN: SV3-10-O-0-00

Supplier Part Number: 565541

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
J series, 23 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Open
Supplier Part Number
565541
Switch Connector
No
Valve Material
Cartridge only
Voltage
volt
Product Weight
0.36 lbs
Alternate Part Numbers
Alternate Part Number C1BT24, Alternate Part Number MINO-00900H03565, Alternate Part Number SV3-10-O-0-00, Alternate Part Number SV3100000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV3-10-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV3-10-O-0-00 SV3-10-O Series Cartridge Valve

565541

None

Not Included

Buna-N

Product Questions & Answers (1)

Question by: Vince P on Sep 12, 2025, 9:22 AM
Is this normally open valve suitable for a hydraulic system that requires quick response times?
Answer by: Customer Support on Sep 13, 2025, 4:36 PM
This 2-way, 2-position valve is designed for applications where the valve needs to be open by default, closing only when the solenoid is energized.
