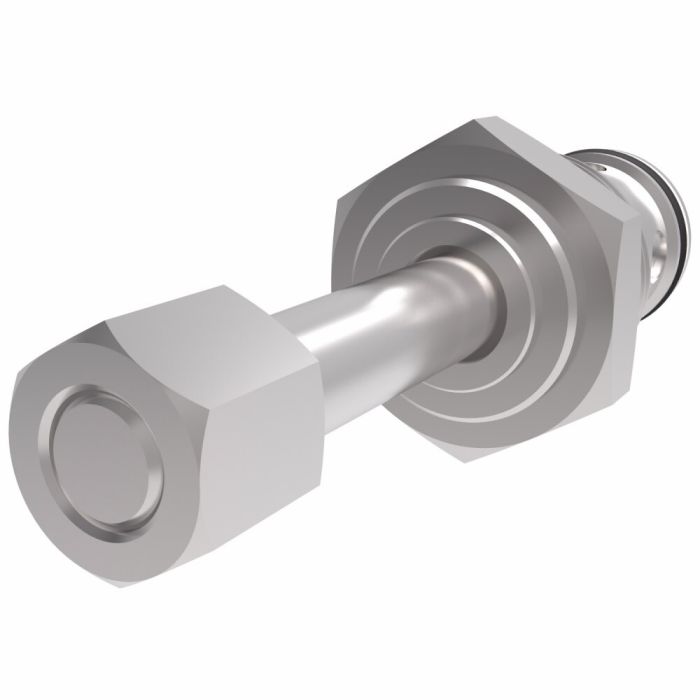

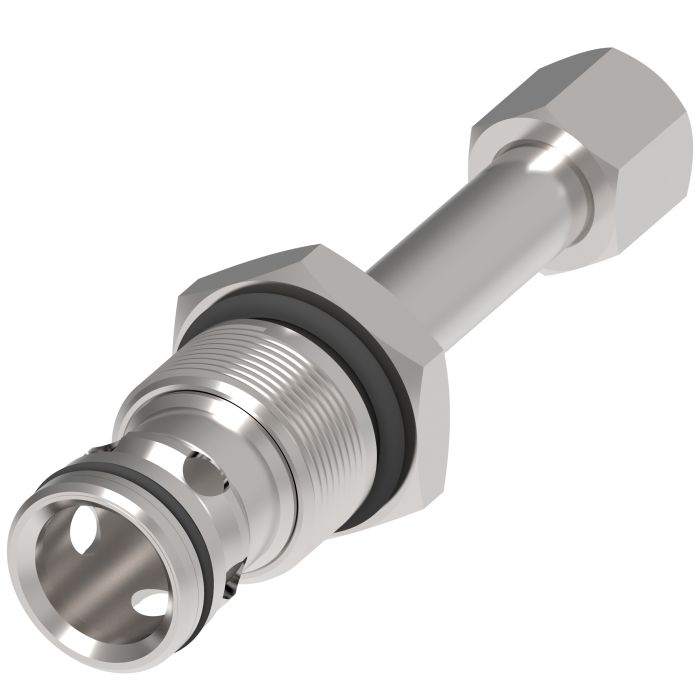

main product photo

SV3-20-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The Vickers by Danfoss / Eaton SV3-20-O/OP/OS Series solenoid valves provide reliable economical and compact valve solutions. Designed for high-pressure environments this solenoid-operated valve operates at a pressure rating of 3000 PSI and a flow rating of 60 GPM. Its bi-directional flow capability between port 1 and port 2 in the de-energized position makes it suitable for a variety of industrial applications.

The valve features hardened and ground steel construction ensuring durability and longevity in demanding conditions. With a recommended filtration level of ISO 4406 Cleanliness Level 18/16/13 the valve sustains optimal performance across a wide temperature range of -40deg;F to 248deg;F.

Designed for screw-in cartridge installation this 2-way 2-position normally open valve is versatile for harvesters refuse haulers and other mobile and industrial applications. The internal leakage of less than 5 drops per minute at maximum 3000 PSI ensures efficient operations.

Model Number: SV3-20-O-0-00

Supplier Part Number: 565545

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
J series, 23 W
Coil Special Features
None
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Open
Supplier Part Number
565545
Switch Connector
No
Valve Material
Cartridge only
Product Weight
1.25 lbs
Alternate Part Numbers
Alternate Part Number C1BT27, Alternate Part Number MINO-00569H79325, Alternate Part Number SV3200000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV3-20-O Series 2-Way, 2-Position, Normally Open Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV3-20-O-0-00 SV3-20-O Series Cartridge Valve

565545

None

Not Included

Buna-N

Product Questions & Answers (2)

Question by: Jimmy B on May 13, 2025, 7:52 PM
valve comes without a coil and housing, so what exactly do i need to get this thing up and running?
Answer by: Customer Support on May 15, 2025, 1:35 PM
The cartridge itself is what you're getting here, no coil, no housing included. For the coil, you'll want a J Series 20 Watt unit, sold separately. The housing requires a machined cavity sized for C-20-2, also sold separately. Without both of those pieces, the cartridge won't have anything to mount into or any way to receive an electrical signal. Once you have all three components together, it installs as a screw-in cartridge, so no exotic tooling is needed for the physical install.
Question by: Cindy C on May 14, 2025, 11:26 AM
Will this valve work in a mobile hydraulic system on a harvester?
Answer by: Customer Support on May 16, 2025, 9:34 AM
It sure will. This 2-way, 2-position valve is often used in harvesters, as well as refuse haulers and other mobile and industrial applications.
