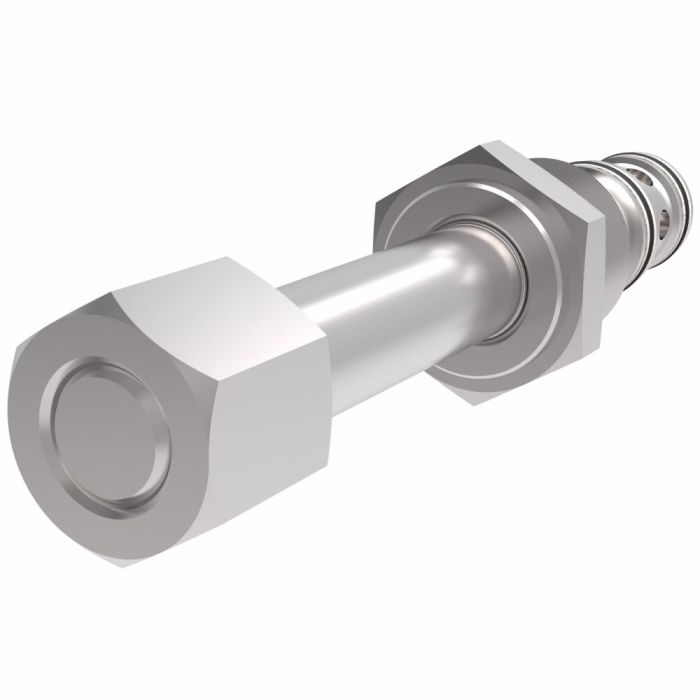

main product photo

SV4-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The Vickers by Danfoss / Eaton SV4-10-3/3P/3S Series Solenoid Valves are designed for demanding mobile and industrial applications such as harvesters and refuse haulers. With a flow rating of 6 GPM and a pressure rating of 3000 PSI this reliable and compact solution is built for high performance and efficiency.

This solenoid operated screw-in cartridge valve features a 3-way 2-position design and includes hardened and ground steel construction for durability. In the de-energized position flow is directed from port 1 to port 2 while port 3 remains blocked. When energized flow is allowed from port 2 to port 3 and port 1 is blocked.

Optimized for direct acting operations the valve ensures minimal internal leakage with a maximum of 10 insup3; per minute at 3000 PSI. Recommended filtration meets ISO 4406 cleanliness level 18/16/13. This model operates within a temperature range from -40deg;F to 248deg;F.

Designed for screw-in cartridge installation the SV4-10-3 Series does not include housing or coil which are sold separately. Choose from J Series 20 Watt coils to match your specific needs.

Model Number: SV4-10-3-0-00

Supplier Part Number: 566307

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
J series, 23 W coils
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
3
Number of Valve Ports
3
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
3-Way 2-Position
Supplier Part Number
566307
Switch Connector
No
Valve Material
Cartridge only
Voltage
volt
Product Weight
0.40 lbs
Alternate Part Numbers
Alternate Part Number C1BT60, Alternate Part Number MINO-00569H79328, Alternate Part Number SV4103000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV4-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: 115VAC 1/2

SV4-10-3-0-115AP SV4-10-3 Series Cartridge Valve

02-167839

None

115VAC 1/2" NPT conduit

Buna-N

SV4-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV4-10-3-0-00 SV4-10-3 Series Cartridge Valve

566307

None

Not Included

Buna-N

Product Questions & Answers (3)

Question by: Harold J on Mar 14, 2025, 8:03 AM
Reckon this here valve will work okay without a housing or a coil?
Answer by: Customer Support on Mar 16, 2025, 6:57 AM
This solenoid cartridge valve requires both a separate housing and coil to function properly, as neither is included with the valve itself.
Question by: Gene J on Jan 5, 2026, 6:19 PM
How does the SV4-10-3 Series 3-way solenoid valve function without the housing and coil included?
Answer by: Customer Support on Jan 7, 2026, 8:03 AM
The SV4-10-3 Series 3-way, 2-position solenoid cartridge valve is designed to operate as part of a hydraulic system by controlling fluid flow. Without the housing and coil, it needs to be integrated into an existing setup where compatible components are present. The valve itself will manage the switching of fluid paths when a coil is attached and energized, but you'll need to ensure you have the appropriate coil and housing to complete the installation process.
Question by: Gene E on Apr 29, 2025, 9:31 AM
reckon this sv4-10-3 valve includes the coil or do i gotta get that separate
Answer by: Customer Support on Apr 30, 2025, 11:06 AM
The SV4-10-3 is a 3-way, 2-position solenoid cartridge valve without a coil included. You'll need to source the coil separately to make it operational.
