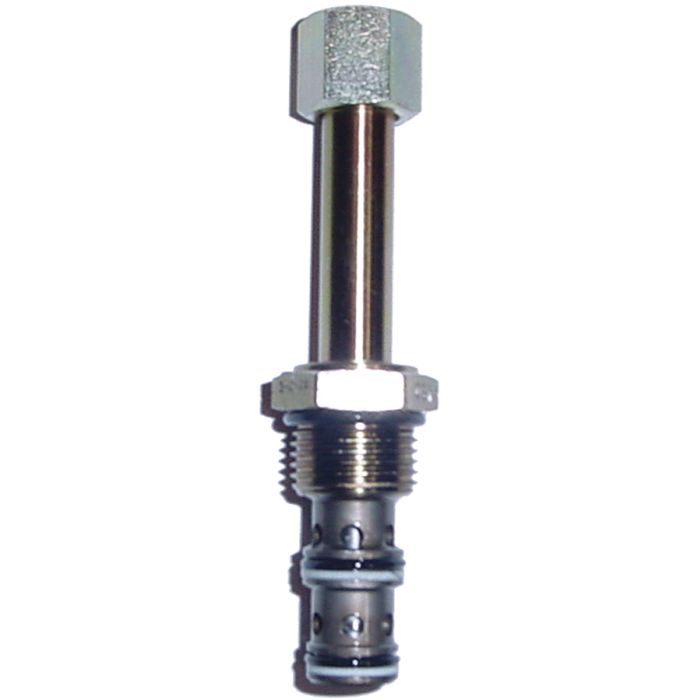

SV4-10-3 Series 3-Way, 2-Position Solenoid Cartridge Valves, Up To 6 GPM & 3000 PSI

Description & Features

Cartridge	Model SV4-10-3*, sold separately.
Coil	J Series 20 Watt, sold separately, see
Group Description	The SV4-10-3 is a 3-way, 2-position, spool-type, direct acting screw-in cartridge solenoid valve, and requires a machined cavity or housing for installation.
Flow Rating	6 GPM.
Housing	Cavity size C-10-3, sold separately, see
Internal Leakage	10 in³ per minute maximum @ 3000 PSI.
Note	Performance data is typical with fluid at 105 SSU and 120°F.
Operation	In the de-energized position, this valve allows flow from port 1 to port 2 while port 3 is blocked. In the energized position, flow is allowed from port 2 to port 3 while port 1 is blocked.
Pressure Rating	3000 PSI.
Recommended Filtration	ISO 4406 Cleanliness Level 18/16/13 or cleaner.
Solenoid Connectors	(Required on models that use DIN 43650 connectors).
Temperature Range	-40°F to 248°F (Extreme Limits).

Products

Model Number	Part Number	Manual Override Option	Housing	Coil	Seal Material	Price	Action
SV4-10-3-0-115AP SV4-10-3 Series Cartridge Valve	02-167839		None	115VAC 1/2" NPT conduit	Buna-N
SV4-10-3-0-00 SV4-10-3 Series Cartridge Valve	566307		None	Not Included	Buna-N

Product Questions & Answers (1)

Question by: Brent M on Mar 25, 2026, 8:31 PM

So this is just the valve itself, right? I gotta get the coil and housing separate?

Answer by: Customer Support on Mar 27, 2026, 5:03 PM

Correct, the SV4-10-3 valve is sold on its own. You'll need to purchase the J Series 20-watt coil and the C-10-3 cavity housing separately to complete the setup.
