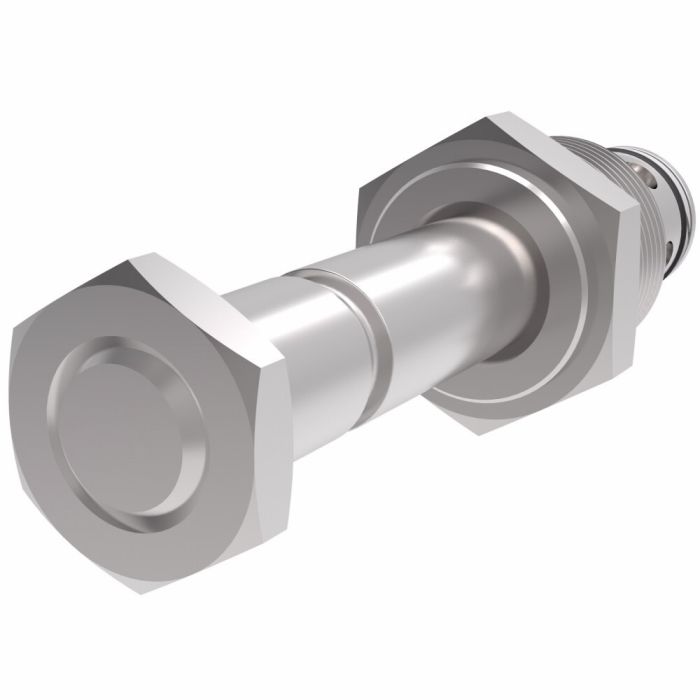

main product photo

SV4-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

Ask A Question

Description & Features

The SV4-10-C Series 2-Way 2-Position Normally Closed Solenoid Cartridge Valve provides reliable performance for demanding applications in harvesters refuse haulers and various mobile and industrial systems. This valve boasts a pressure rating of 3000 PSI and a flow rating of 6 GPM.

Crafted from hardened and ground steel the valve ensures durability and longevity. The internal leakage is maintained at a maximum of 5 insup3; per minute at 3000 PSI. In the de-energized position flow is blocked in both directions while the energized position allows flow in either direction.

Installation is facilitated by the screw-in cartridge design and the valve operates with J Series 20 Watt coils which are sold separately. The temperature range for optimal operation is between -40deg;F to 248deg;F.

For filtration it's recommended to adhere to ISO 4406 Cleanliness Level 18/16/13 or cleaner. The seal material utilized is Buna-N ensuring robust sealing under various conditions.

**Model Number:** SV4-10-C-0-00

**Supplier Part Number:** 565537

Specifications

Application
Harvesters, refuse haulers, mobile and industrial applications
Check Valve
No
Coil
Not Included
Coil Series
J series, 23 W coils
Diode
No
Brand
Danfoss – Hydraulics
Brand
Danfoss Power Solutions
Pack Size
1.00
UOM
EA
Features
350 bar (5000 psi) & 227 L/min (60 USgpm)|Reliable, economical and compact|Hardened and ground steel
Housing
None
Installation Type
Screw-in Cartridge
Leakage
Standard
Manual Override Option
No
Number of Housing Ports
2
Number of Valve Ports
2
Operation
Direct Acting
Port Type
Cartrige Only
Recommended Filtration Level
18/16/13
Seal Material
Buna-N
Seal Type
Buna-N
Special Features
None
Style
2-Way 2-Position Normally Closed
Supplier Part Number
565537
Switch Connector
No
Valve Material
Cartridge only
Product Weight
0.58 lbs
Alternate Part Numbers
Alternate Part Number 109379-001, Alternate Part Number C1BT22, Alternate Part Number MINO-00569H79329, Alternate Part Number SV410C000

Related Documents

Similar Products

Model Number Part Number Manual Override Option Housing Coil Seal Material Price Action
SV4-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: Aluminum FR 1/4

SV4-10-C-2G-230AP SV4-10-C Series Cartridge Valve

02-167864

Aluminum FR 1/4" BSPP

230VAC 1/2" NPT conduit

Buna-N

SV4-10-C Series 2-Way, 2-Position, Normally Closed Solenoid Cartridge Valve, Housing: None, Coil: Not Included

SV4-10-C-0-00 SV4-10-C Series Cartridge Valve

565537

None

Not Included

Buna-N

Product Questions & Answers (2)

Question by: Dustin M on Nov 11, 2025, 10:27 AM
What kind of applications does this valve work best with?
Answer by: Customer Support on Nov 12, 2025, 6:09 PM
These valves are reliable for harvesters, refuse haulers, plus mobile and industrial systems.
Question by: Roy H on May 31, 2025, 1:13 PM
coil ain't included with this one right? what series do i need to get for it?
Answer by: Customer Support on Jun 2, 2025, 6:08 AM
Correct, the coil is sold separately. You'll need a J Series 20 Watt coil to pair with this valve. Worth noting that if your model uses a DIN 43650 connector, you'll also need a solenoid connector, which is required separately as well. The cartridge cavity and housing are not included either, so make sure you've got a C-10-2 cavity size on hand before you put this together.
